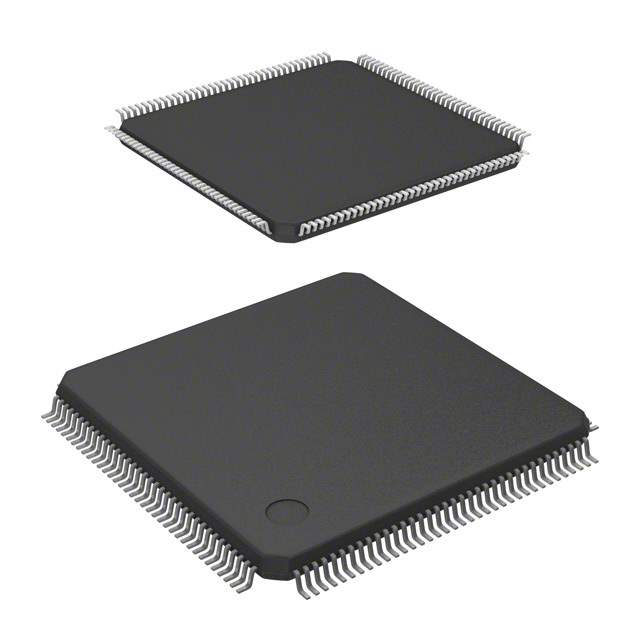

Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series ST10
Packaging Tray
Part Status Obsolete(EOL)
Core Processor ST10
Core Size 16-Bit
Speed 40MHz
Connectivity ASC, CAN, EBI/EMI, I2C, SSC, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 111
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
RAM Size 20K x 8
Supply Voltage 4.5 V ~ 5.5 V
Data Converters A/D 24x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Package 144-LQFP
Win Source Part Number 1260091-ST10F272Z2T3
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name ST10F272
Introduction Date June 29, 2006
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian ST10F272Z2T3 CAD Model

Description

ST10F272Z2T3 - High-Performance 16-bit Microcontroller

The ST10F272Z2T3 is a cutting-edge 16-bit microcontroller produced by STMicroelectronics, designed to cater to a broad range of automotive and industrial applications. This microcontroller is part of the ST10 family, which is renowned for its high CPU performance combined with high system functionality and throughput.

At the core of the ST10F272Z2T3 is a high-performance 16-bit CPU with a 5-stage pipeline, 32-bit internal architecture, and an enhanced MAC unit, providing the power and efficiency needed for complex and demanding applications. The device operates at a frequency of up to 40MHz, ensuring swift processing and response times.

This microcontroller is equipped with a rich set of features including:

  • 1MB of Flash memory: Providing ample space for application code and data storage, with endurance for intensive read/write cycles.
  • 80KB of RAM: Offering high-speed data storage for real-time operations and buffer storage.
  • 16-channel 10-bit A/D converter: Enabling precise analog-to-digital conversions for sensor data processing and control tasks.
  • Multiple communication interfaces: Including CAN, UART, SPI, and I²C, facilitating versatile connectivity options for peripherals and other devices.
  • Robust I/O capabilities: With numerous multifunctional general-purpose input/output pins to interface with a wide array of external components.

The ST10F272Z2T3 also features advanced interrupt handling capabilities with an interrupt controller that supports up to 56 sources with 16 priority levels, which is essential for managing complex tasks and real-time events efficiently.

With its integrated single voltage Flash memory, this microcontroller allows for in-application programming and full read-while-write capability, which is crucial for seamless firmware updates and data logging without interrupting the main application.

STMicroelectronics has also placed a strong emphasis on safety and reliability in the ST10F272Z2T3, incorporating features such as a watchdog timer, PLL for clock stabilization, and a real-time clock, all ensuring stable and reliable operation in various conditions.

Whether it's for automotive control units, industrial automation systems, or sophisticated control applications, the ST10F272Z2T3 offers a powerful and versatile solution that engineers can rely on for their critical design projects.
