Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features ST6 series Microcontroller IC 8-Bit 8MHz 4KB (4K x 8) EPROM, UV
Manufacturer STMicroelectronics
Series ST6
Package Tube
Part Status Obsolete
Core Processor ST6
Core Size 8-Bit
Speed 8MHz
Peripherals LVD, POR, WDT
Number of I/O 12
Program Memory Size 4KB (4K x 8)
Program Memory Type EPROM, UV
Supply Voltage 3V ~ 6V
Data Converters A/D 8x8b
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Through Hole

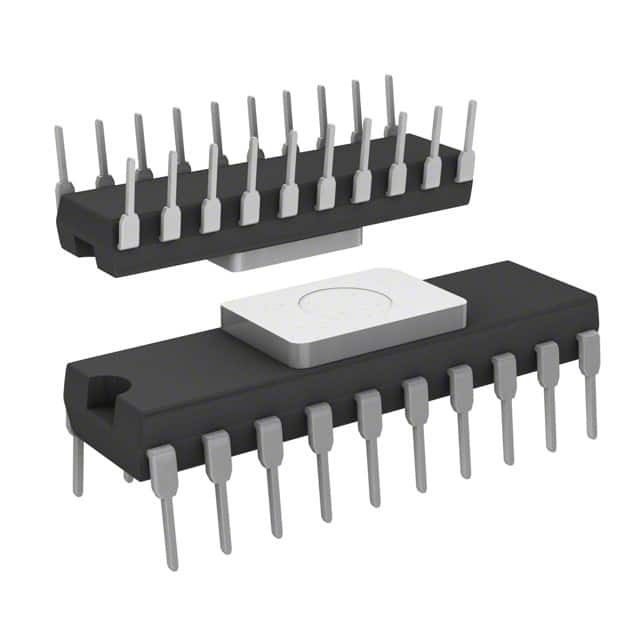

Package 20-CDIP (0.300", 7.62mm) Window
Family Name ST62E
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 20
Popularity High
Supply and Demand Status Balance
Win Source Part Number 935187-ST62E20CF1
Ultra Librarian 3D Model Ultra Librarian ST62E20CF1 CAD Model

Description

The ST62E20CF1 is a high-performance, 8-bit microcontroller from the reputable electronics manufacturer STMicroelectronics. This microcontroller is part of the ST62 family of 8-bit devices, which are designed for low-cost, high-volume, and low-power applications. The ST62E20CF1 is particularly well-suited for use in automotive, industrial control systems, and consumer electronics due to its robust feature set and reliability.

Key Features

  • EPROM Memory: The ST62E20CF1 comes with on-chip EPROM, making it ideal for rapid prototyping and small-scale production runs where the program may need to be updated or modified during the development phase.
  • Integrated Oscillator: An integrated oscillator reduces the number of external components required, simplifying design and reducing overall system cost.
  • Low Power Consumption: Designed with power efficiency in mind, this microcontroller is capable of operating in various low power modes, making it suitable for battery-powered applications.
  • Robust I/O Capabilities: It features a versatile set of input/output options, including multiple GPIO ports that can be configured for a variety of digital interfacing needs.
  • ADC: An onboard analog-to-digital converter allows the microcontroller to interface with analog sensors and devices, broadening its application scope.
  • Communication Peripherals: The ST62E20CF1 includes communication peripherals like SPI and I²C for easy integration with other digital systems and components.

Applications

This microcontroller is a strong candidate for applications requiring a balance between performance and cost. Its applications span a wide range of fields, including but not limited to:

  • Automotive systems, such as engine control units and dashboard electronics
  • Consumer electronics, like smart home devices and personal gadgets
  • Industrial control systems, including process controllers and monitoring equipment
  • Portable devices, where power consumption is a critical factor

The ST62E20CF1 from STMicroelectronics is a versatile microcontroller that offers an excellent blend of features for a wide array of applications, ensuring both cost-effectiveness and high performance.
