Products specifications

Category RF/IF and RFID>RF Receivers
Mfr STMicroelectronics
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Frequency 1.561GHz, 1.575GHz, 1.601GHz
Sensitivity -162dBm
Data Rate (Max) 12Mbps
Modulation or Protocol BeiDou, Galileo, GLONASS, GNSS, GPS
Applications GPS Receiver
Data Interface I2C, SPI, UART, USB
Memory Size 256kB SRAM, 512kB ROM
Antenna Connector PCB, Surface Mount
Voltage - Supply 1.08V ~ 1.32V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

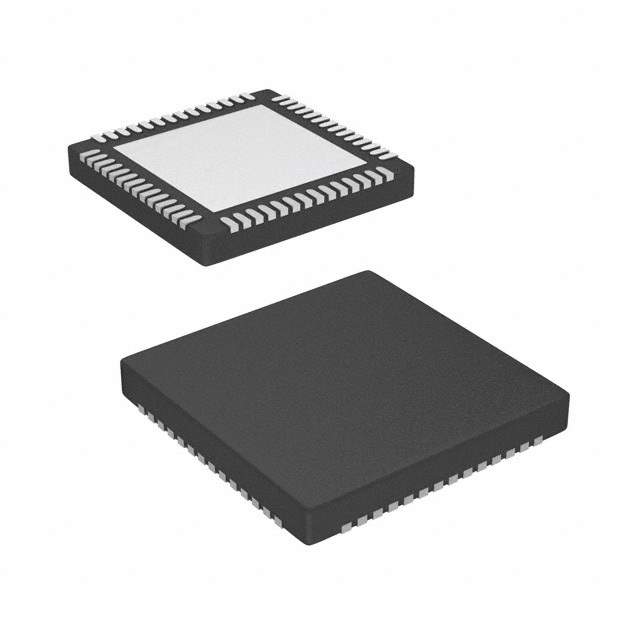

Package / Case 56-VFQFN Exposed Pad
Supplier Device Package 56-VFQFPN (7x7)
Base Product Number STA8089
Standard Package 2,500
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1235905-STA8089FGATR
Ultra Librarian 3D Model Ultra Librarian STA8089FGATR CAD Model

Description

Introducing the STA8089FGATR from STMicroelectronics

The STA8089FGATR is a cutting-edge multi-frequency GNSS receiver module from STMicroelectronics, one of the industry's leading semiconductor manufacturers. This high-performance product is designed to provide precise positioning and navigation capabilities for a wide range of applications, including automotive navigation systems, telematics, personal navigation devices, and fleet management solutions.

Key Features

  • Multi-Constellation Support: The STA8089FGATR is capable of concurrently receiving signals from multiple satellite systems such as GPS, Galileo, GLONASS, BeiDou, and QZSS. This feature ensures higher accuracy, faster fix times, and improved reliability in challenging environments.
  • Advanced Tracking Technology: With its state-of-the-art tracking technology, the STA8089FGATR can track visible satellites, providing high sensitivity and accuracy even in urban canyons or dense foliage where signals are typically weak or obstructed.
  • Low Power Consumption: Designed with power efficiency in mind, this GNSS receiver is ideal for battery-powered applications where power conservation is critical. It ensures longer operational periods while maintaining high performance.
  • Integrated Safety Features: The STA8089FGATR includes several safety features making it suitable for automotive-grade applications. It complies with the stringent requirements for reliability and performance in the automotive industry.
  • Compact Form Factor: The module comes in a small form factor, making it easy to integrate into various designs without significantly impacting the overall size of the end product.

Applications

The versatility of the STA8089FGATR makes it a perfect fit for numerous applications. It is particularly well-suited for:

  • Automotive navigation and infotainment systems
  • Advanced Driver Assistance Systems (ADAS)
  • Portable navigation devices
  • Marine and aerial navigation systems
  • Fleet management and asset tracking solutions

STMicroelectronics' STA8089FGATR boasts robust performance and a comprehensive set of features, making it an excellent choice for developers and manufacturers seeking a reliable GNSS solution. Its integration into your product lineup can significantly enhance the value proposition of your navigation and positioning offerings.
