Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Series Automotive, AEC-Q101, ECOPACK®2
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 60 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 1200 V
Mounting Type Through Hole
Package / Case DO-247-2 (Straight Leads)
Supplier Device Package DO-247
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number STBR6012
Other Names 497-17098
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282009-STBR6012WY
Ultra Librarian 3D Model Ultra Librarian STBR6012WY CAD Model

Description

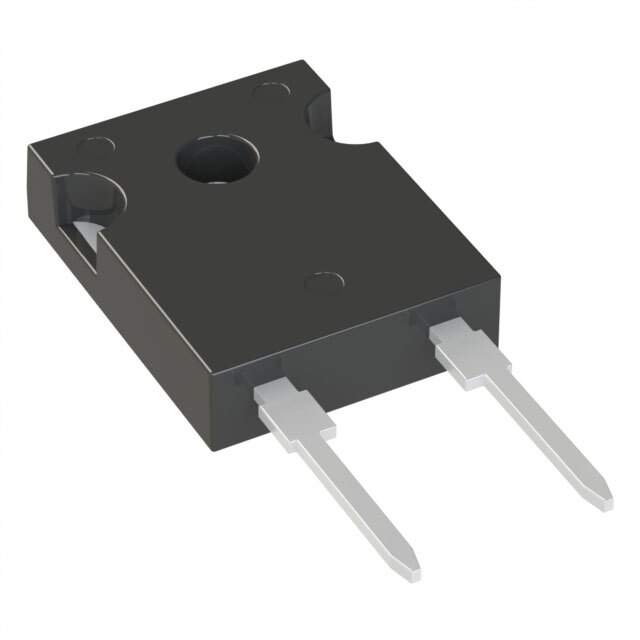

The STBR6012WY is a robust and efficient power rectifier from STMicroelectronics, designed to handle high current and voltage with ease. This device is particularly well-suited for applications that require a reliable and high-performance diode for their power supply and conversion needs.

Key Features

  • High Reverse Voltage Capability: The STBR6012WY can withstand reverse voltages up to 1200V, making it suitable for high voltage applications.
  • Low Forward Voltage Drop: With a low forward voltage drop, this diode ensures minimal power loss during operation, leading to increased efficiency in your circuit design.
  • High Surge Current Capability: It can handle surge currents, ensuring reliable performance during transient conditions.
  • Robust Design: The device is encapsulated in an insulated package that provides excellent thermal and electrical isolation, which is crucial for safety and longevity.

Applications

The STBR6012WY is ideal for a variety of applications, including:

  • Switching power supplies
  • Motor control circuits
  • Inverters
  • Free-wheeling diodes
  • Other power management tasks

Technical Specifications

Parameter Value Reverse Voltage (V<sub>R) 1200V Forward Current (I<sub>F) 60A Forward Voltage Drop (V<sub>F) Typically 1.15V at 60A Package TO-247

The STBR6012WY is a testament to STMicroelectronics' commitment to providing high-quality components that combine performance with reliability. Whether you're designing power supplies or managing power in industrial systems, the STBR6012WY offers the capabilities you need to ensure efficient and stable operation.
