Introducing the STEVAL-CCA005V1 from STMicroelectronics

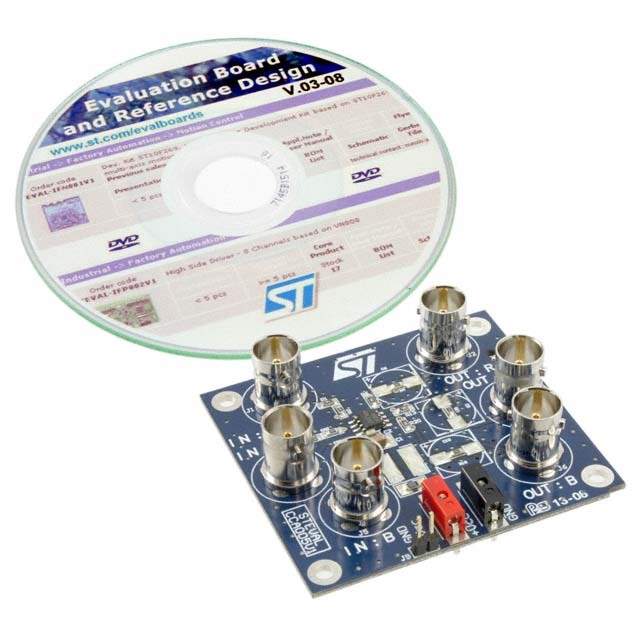

The STEVAL-CCA005V1 is an innovative evaluation board designed by STMicroelectronics, tailored for audio applications that demand high-quality sound reproduction. This board is part of the ST's extensive range of evaluation tools, which are crafted to help developers and engineers accelerate the design process and bring their products to market more efficiently.

At the heart of the STEVAL-CCA005V1 lies the TS4990 audio power amplifier, which is capable of driving a 32Ω load with less than 1% distortion (THD+N) and provides an output power of 1W with a 5V power supply. This makes the board an excellent choice for portable audio applications, such as mobile phones, tablets, and other multimedia devices where quality and power efficiency are paramount.

The board is designed to operate within a 2.2V to 5.5V range, offering flexibility for use in various system configurations. Additionally, the TS4990 includes a standby function that reduces the power consumption when not in use, making the STEVAL-CCA005V1 an energy-efficient solution for battery-powered devices.

The evaluation board comes with all the necessary components for an operational audio amplifier setup, including input and output capacitors and a decoupling capacitor for the power supply. It also features test points that provide convenient access to the audio signal inputs and outputs, facilitating easy measurement and debugging during development.

For those looking to customize their audio experience, the STEVAL-CCA005V1 provides jumpers that allow users to configure the gain settings of the amplifier. This level of customization ensures that developers can tailor the audio performance to meet the specific needs of their application.

STMicroelectronics has a reputation for providing high-quality, reliable components, and the STEVAL-CCA005V1 is no exception. With its robust design and versatile features, this evaluation board is an essential tool for any audio system designer looking to create products with outstanding audio performance.

Whether you're developing a new portable audio device or looking to improve the sound quality of an existing product, the STEVAL-CCA005V1 offers a practical and efficient solution for your audio amplification needs.
