Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Type Transceiver; Bluetooth® 5
Frequency 2.4GHz
For Use With/Related Products BlueNRG-LP
Supplied Contents Board(s), Cable(s), Accessories
Base Product Number IDB011V1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 497-STEVAL-IDB011V1
Standard Package 1
Win Source Part Number 1033336-STEVAL-IDB011V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-IDB011V1 CAD Model

Description

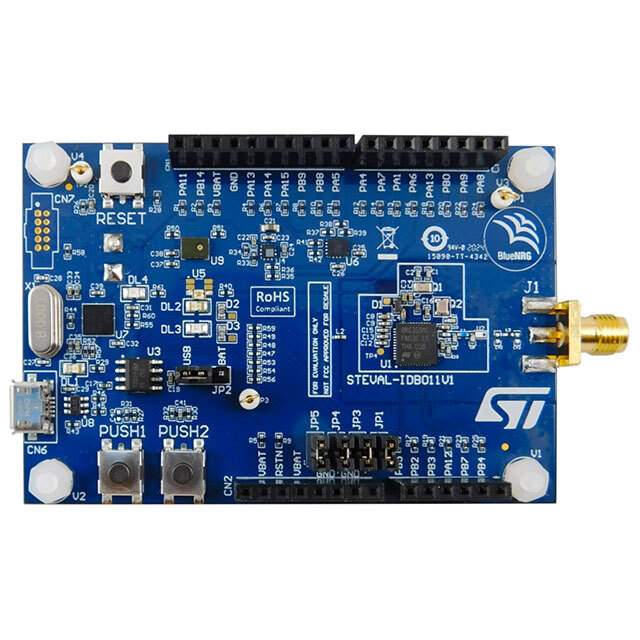

STEVAL-IDB011V1 Bluetooth Low Energy Evaluation Board

The STEVAL-IDB011V1 is a comprehensive evaluation platform designed by STMicroelectronics to provide developers with a versatile tool for testing and prototyping state-of-the-art applications using Bluetooth Low Energy (BLE) technology. This evaluation board is built around the BlueNRG-M2 application processor module that integrates the BlueNRG-2 Bluetooth low energy System on Chip (SoC).

The BlueNRG-M2 module on the STEVAL-IDB011V1 is a powerful, programmable device that supports the latest Bluetooth 5.0 standard, offering enhanced features such as higher data throughput, extended advertising capabilities, and improved privacy and security. This makes the board suitable for a wide range of IoT applications, including smart home automation, industrial control, wearable devices, and wireless sensor networks.

The evaluation board comes equipped with an array of features to facilitate development:

  • A set of MEMS sensors, including an accelerometer and a gyroscope, for motion and environmental sensing.
  • An array of LEDs and push-buttons for user interaction and feedback.
  • Various interfaces for expansion and connectivity, such as UART, SPI, I2C, and GPIOs, allowing for easy integration with external components or modules.
  • A debug connector for programming and debugging purposes.
  • USB connectivity for power supply and communication with a host PC.

The STEVAL-IDB011V1 is supported by the comprehensive STSW-BLUENRG1-DK software development kit (SDK), which provides a rich set of development tools and sample applications to kick-start the development process. The SDK is fully compatible with the STM32 ecosystem through the STM32Cube software and includes support for the STBlueNRG-1 GUI, which allows for easy configuration and testing of the Bluetooth module.

With its robust design, extensive documentation, and strong support from STMicroelectronics, the STEVAL-IDB011V1 evaluation board is an excellent choice for engineers and developers looking to explore the capabilities of Bluetooth 5.0 and develop BLE-based applications with speed and efficiency.
