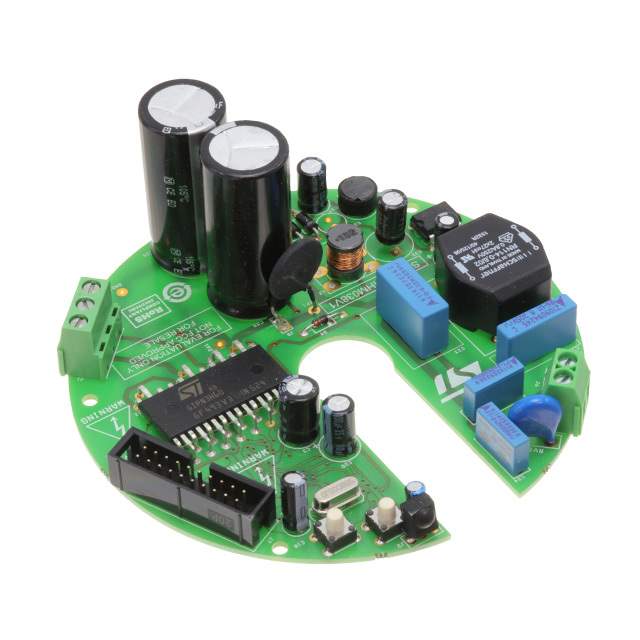

STEVAL-IHM038V1 - STMicroelectronics Motor Control Evaluation Board

    The STEVAL-IHM038V1 from STMicroelectronics is a sophisticated evaluation platform designed for motor control applications. It is specifically tailored to drive a single three-phase brushless DC (BLDC) motor using the STMicroelectronics STSPIN32F0A advanced motor controller. This evaluation board is an ideal solution for rapid prototyping and testing of motor control designs in applications such as drones, electric fans, and portable power tools.

    At the heart of the STEVAL-IHM038V1 is the STSPIN32F0A system-in-package, which integrates a triple half-bridge gate driver capable of driving power MOSFETs with currents up to 600 mA. The board is designed to operate over a wide input voltage range from 8 V to 45 V, making it versatile for various power supply requirements. The integrated MCU allows for the implementation of complex motor control algorithms such as six-step, field-oriented control (FOC), and sensorless vector control.

    The evaluation board comes equipped with a range of features to facilitate development and debugging. These include user LEDs, a potentiometer for speed control, and overcurrent protection. Additionally, the board offers various options for feedback, including Hall sensor inputs and an encoder interface, which provide flexibility in motor control and position sensing strategies.

    Connectivity is a key aspect of the STEVAL-IHM038V1, with the board offering a user-friendly interface that includes a micro USB connector for the ST-LINK/V2 debugging and programming tool. This allows for easy firmware development and real-time debugging. The board is also compatible with the STM32 ecosystem, benefiting from a comprehensive suite of development tools, software libraries, and community support.

    The compact size and robust design of the STEVAL-IHM038V1 make it an excellent choice for embedding into final product designs. With its advanced features and ease of use, the STEVAL-IHM038V1 evaluation board is a powerful tool for engineers and designers looking to develop and optimize motor control applications with efficiency and precision.
