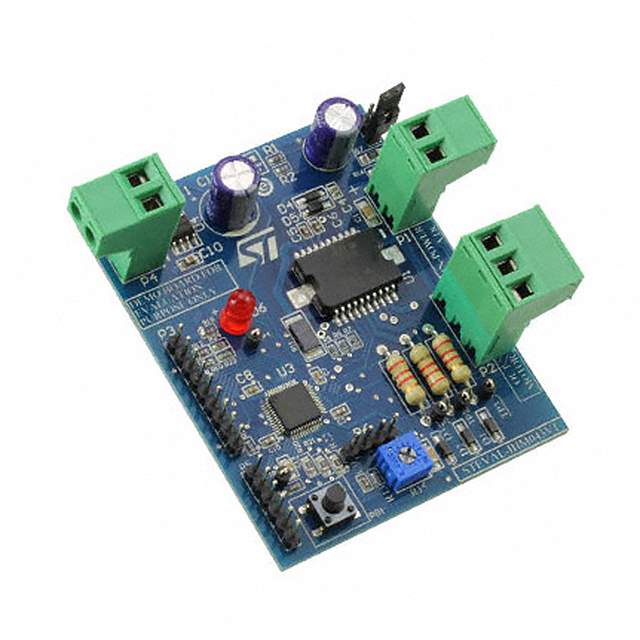

STEVAL-IHM043V1 - STMicroelectronics' Low Voltage Three-Phase Inverter Power Board

    The STEVAL-IHM043V1, from STMicroelectronics, is a sophisticated low voltage three-phase inverter power board designed for applications that require a compact, high-efficiency power inverter solution. This power board is particularly suited for driving brushless DC motors in a range of applications, including but not limited to drones, small electric vehicles, and home appliances.

    At the heart of the STEVAL-IHM043V1 is STMicroelectronics' advanced STGIPN3H60 – a smart power module that integrates a three-phase inverter with gate drivers and protection features. The module is capable of handling a maximum current of 10 A and is designed for a power range up to 600 W, making it perfect for a wide array of low-power applications.

    The board's layout is optimized for excellent thermal performance, ensuring reliable operation even under high load conditions. The inclusion of an aluminum heatsink further enhances its thermal management capabilities. The STEVAL-IHM043V1 also features undervoltage lockout, overcurrent protection, and thermal shutdown, providing a robust and safe platform for motor control.

    For developers looking to jumpstart their motor control projects, the STEVAL-IHM043V1 comes with a comprehensive set of documentation and software tools. This includes reference designs, firmware libraries, and example code, which greatly accelerate the development process by providing a solid foundation to build upon.

    The power board is compatible with a wide range of microcontrollers, offering flexibility in system design. It also includes a connector for the STMicroelectronics X-NUCLEO expansion boards, which allows for easy integration with additional capabilities such as sensing, control, and communication functions.

    In summary, the STEVAL-IHM043V1 is a versatile and efficient solution for anyone looking to implement a three-phase inverter in their low voltage applications. Its combination of integrated features, thermal efficiency, and extensive support materials make it an excellent choice for engineers and hobbyists alike.
