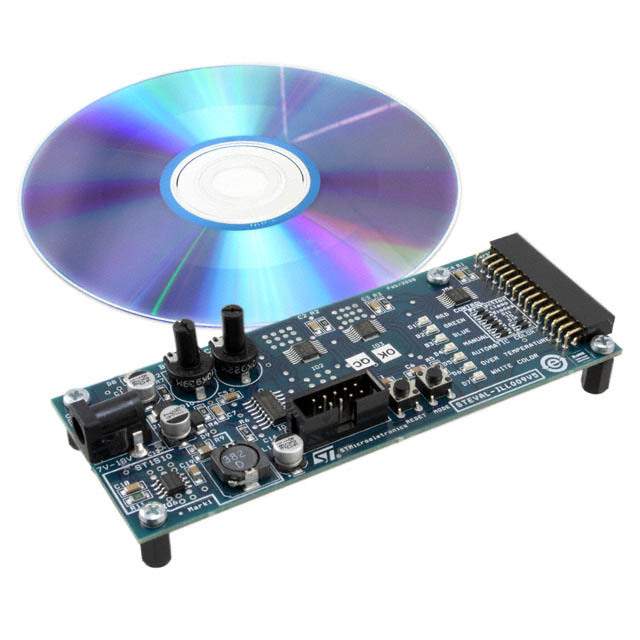

STEVAL-ILL009V5 LED Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL009V5 is an advanced evaluation board designed by STMicroelectronics, a leader in the semiconductor industry. This board is specifically tailored for testing and evaluating LED driver solutions based on the STLUX385A digital controller for lighting applications. It is an ideal platform for engineers and designers to accelerate the development of LED lighting systems with a focus on efficiency, reliability, and flexibility.

Key Features

• STLUX385A Digital Controller: At the heart of the STEVAL-ILL009V5 is the STLUX385A, which is a cutting-edge digital controller optimized for managing LED drivers through a programmable state machine and embedded peripherals.
• Dimming Capabilities: The board supports advanced dimming features, allowing for smooth and flicker-free control over the brightness of the connected LEDs, which is crucial for creating the right ambiance in various lighting scenarios.
• Multiple Output Channels: With multiple output channels, the STEVAL-ILL009V5 can drive several LED strings independently, making it versatile for complex lighting designs.
• Wide Input Voltage Range: It is designed to accommodate a broad input voltage range, ensuring compatibility with a variety of power supplies and making it suitable for global use.
• Protection Features: The evaluation board includes numerous protection features such as overcurrent, thermal shutdown, and under-voltage lockout, safeguarding the board and connected components from potential damage.
• Flexible Power Configuration: Users can configure the board for different power levels, adapting to the needs of various LED applications from indoor lighting to industrial illumination.

Applications

The STEVAL-ILL009V5 is designed for a wide range of applications, including but not limited to:

• Residential and commercial lighting
• Architectural lighting
• Street lighting
• Portable and emergency lighting

With its comprehensive features and robust design, the STEVAL-ILL009V5 evaluation board from STMicroelectronics is an excellent tool for designers looking to push the boundaries of LED lighting technology. It provides a convenient and efficient way to test and optimize various parameters, ensuring that the final product meets the highest standards of performance and quality.
