Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Type Display
Function LED Front Panel
Embedded Yes, MCU, 8-Bit
Utilized IC / Part STLED325, STM8S, STMPE24M31
Supplied Contents Board(s)
Other Names 497-10606,STEVALILL029V1,-497-10606,1805-STEVAL-ILL029V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284645-STEVAL-ILL029V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL029V1 CAD Model

Description

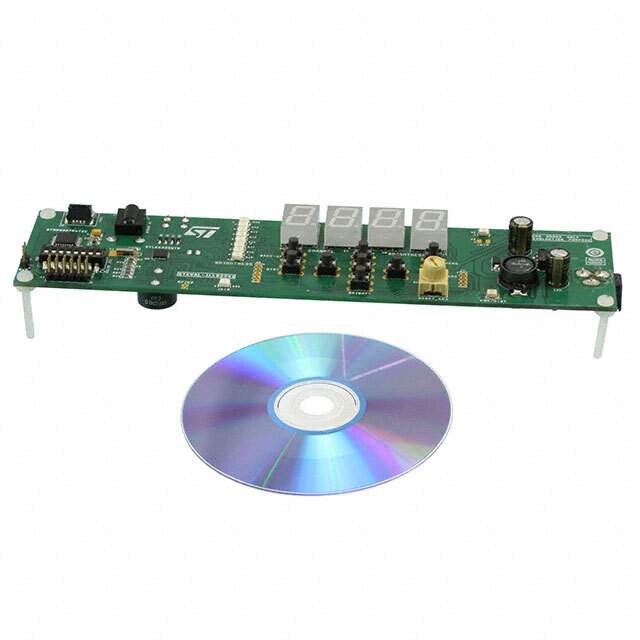

STEVAL-ILL029V1 LED Driver Evaluation Board

The STEVAL-ILL029V1 from STMicroelectronics is a highly efficient evaluation board designed specifically for LED lighting applications. This innovative product leverages the advanced features of the LED6000 step-down monolithic converter to provide a reliable and high-performing solution for driving a single LED string with a maximum power of 48 W and an input voltage ranging from 6.5 V to 48 V.

The board is equipped with numerous features that make it an ideal choice for a variety of lighting scenarios. It is particularly suited for indoor and architectural LED lighting, LED street lighting, and LED floodlights, offering a versatile platform for designers and engineers to evaluate the LED6000 in real-world conditions.

Key Features and Benefits:

  • High Efficiency: The STEVAL-ILL029V1 boasts a high efficiency that can reach up to 95%, thanks to the LED6000's optimized design. This ensures minimal energy loss and reduced heat generation, which is crucial for maintaining the longevity of the LEDs.
  • Wide Input Voltage Range: With an input voltage range of 6.5 V to 48 V, the board can accommodate a variety of power supplies and is flexible enough to be used in multiple LED lighting applications.
  • Adjustable Output Current: The evaluation board allows for easy adjustment of the output current up to 1.5 A through an external resistor, providing precise control over the brightness of the LED string.
  • Dimming Capability: The STEVAL-ILL029V1 supports both analog and PWM dimming, offering designers the ability to implement smooth brightness control and energy-saving features into their lighting solutions.
  • Thermal Protection: The LED6000 includes an over-temperature protection feature, ensuring the board operates within safe temperature limits and preventing damage to the LED string and driver circuitry.
  • Compact Design: The compact size of the evaluation board makes it easy to integrate into existing lighting systems or use as a standalone unit for testing and development purposes.

The STEVAL-ILL029V1 is a testament to STMicroelectronics' commitment to providing state-of-the-art solutions for the LED lighting industry. With its robust design, comprehensive features, and ease of use, this evaluation board is a valuable tool for anyone looking to develop efficient and innovative LED lighting systems.
