Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Current - Output / Channel 200mA
Outputs and Type 1, Isolated
Voltage - Output 16V
Voltage - Input 90 ~ 265 VAC
Supplied Contents Board(s)
Utilized IC / Part HVLED805
Base Product Number STEVAL
Other Names 497-11282,-497-11282,STEVALILL037V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283884-STEVAL-ILL037V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL037V1 CAD Model

Description

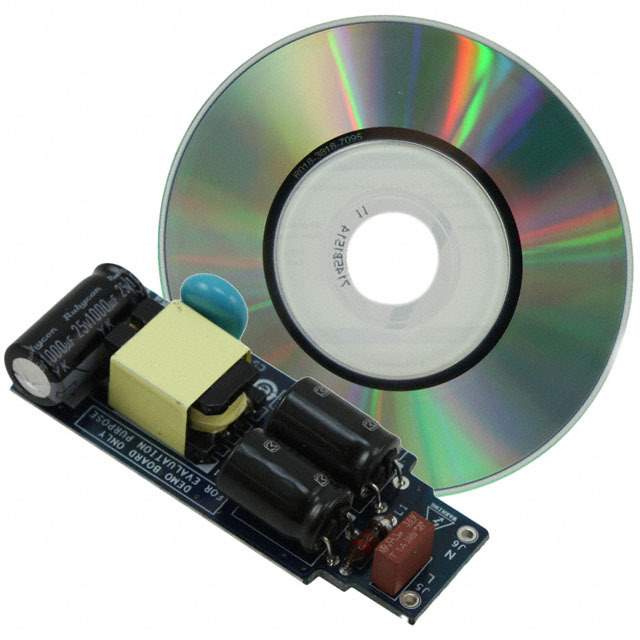

STEVAL-ILL037V1 LED Driver Evaluation Board

The STEVAL-ILL037V1 from STMicroelectronics is an innovative evaluation platform designed to demonstrate the capabilities of the LED6000 step-down monolithic switching regulator, which is optimized for driving high-brightness LEDs. This evaluation board is an excellent tool for engineers and designers looking to explore the features and performance of the LED6000 in LED lighting applications.

Key Features:

  • Integrated LED6000 step-down regulator capable of delivering up to 3 A of current.
  • Wide input voltage range from 4.5 V to 38 V, suitable for a variety of power sources.
  • Adjustable output current through an external resistor for precise brightness control.
  • High efficiency operation with over 95% efficiency at certain conditions, minimizing energy loss.
  • Pulse-width modulation (PWM) dimming control input, allowing for dynamic brightness control.
  • Thermal shutdown and overcurrent protection to ensure the longevity and safety of the board and connected LEDs.
  • Compact and flexible design, making it suitable for prototyping and integration into existing lighting systems.

Applications:

The STEVAL-ILL037V1 is ideal for a wide range of high-brightness LED applications, including:

  • Architectural lighting
  • Street lighting
  • Automotive and emergency vehicle lighting
  • General purpose LED lighting
  • Industrial lighting systems

Design Advantages:

The board is designed to facilitate easy evaluation of the LED6000 regulator. Engineers can quickly set up the STEVAL-ILL037V1 and adjust various parameters to best suit their specific lighting requirements. The evaluation board's layout is optimized for heat dissipation, ensuring reliable operation even under high power conditions. Additionally, the STEVAL-ILL037V1 is equipped with connectors for easy interfacing with external control circuits or power sources.

With its robust design and comprehensive feature set, the STEVAL-ILL037V1 evaluation board from STMicroelectronics is an indispensable tool for developing efficient and innovative LED lighting solutions.
