Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Outputs and Type 1, Non-Isolated
Features Dimmable
Voltage - Input 5.5V ~ 48V
Supplied Contents Board(s)
Utilized IC / Part LED5000
Base Product Number STEVAL
Other Names 497-14488
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1283890-STEVAL-ILL056V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL056V1 CAD Model

Description

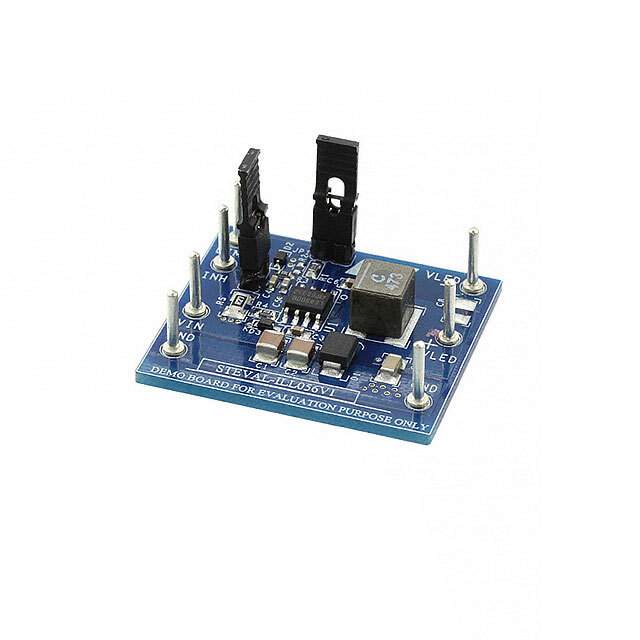

The STEVAL-ILL056V1 is an advanced evaluation board designed by STMicroelectronics, tailored for driving LEDs with high efficiency and accuracy. This product is part of ST's extensive range of evaluation tools that help designers and engineers to test the performance, optimize the features, and facilitate the development of LED lighting solutions.

Key Features

  • LED Driver IC: The board is built around the ST's LED6000 step-down monolithic converter, which is capable of delivering up to 3 A of current to the load.
  • Wide Input Voltage Range: It operates from a wide input voltage range from 6.5 V to 48 V, making it suitable for a variety of LED lighting applications.
  • Adjustable Output Current: The output current can be set with external components and fine-tuned via a voltage reference.
  • High Efficiency: The LED6000 integration allows for high efficiency, which is crucial for reducing heat dissipation and improving the reliability of the lighting system.
  • Dimming Capabilities: The board supports both analog and PWM dimming, providing flexibility for brightness control.
  • Thermal Protection: It includes thermal shutdown protection to safeguard the LED driver from overheating conditions.
  • Compact Design: The STEVAL-ILL056V1 boasts a compact layout that is optimized for minimal footprint and ease of use in various applications.

Applications

The STEVAL-ILL056V1 is designed for a wide range of applications, including:

  • Indoor and outdoor LED lighting
  • Architectural and decorative LED lighting
  • LED street lighting
  • Emergency lighting systems
  • Backlighting units for LCD displays

Design Support

STMicroelectronics provides comprehensive design support for the STEVAL-ILL056V1, including detailed documentation, reference design files, and technical assistance to facilitate rapid development and integration of the board into end-product designs.
