STEVAL-IPMNM1S - Integrated Power Module from STMicroelectronics

The STEVAL-IPMNM1S is a compact, high-efficiency, integrated power module designed by STMicroelectronics to provide a sophisticated solution for driving three-phase motors. This module is part of the SLLIMM™-nano series, which stands for Small Low-Loss Intelligent Molded Module with a focus on providing a small footprint without compromising performance. It is particularly suitable for applications such as fans, pumps, compressors, and other low-power motor drives.

At the heart of the STEVAL-IPMNM1S is an advanced IPM (Intelligent Power Module) that combines STMicroelectronics' state-of-the-art IGBTs with freewheeling diodes in a single package. The module offers an excellent balance of low conduction and switching losses, which results in high efficiency and reliability. The integrated design simplifies the PCB layout and reduces the bill of materials, making it an ideal choice for compact and cost-sensitive designs.

Key features of the STEVAL-IPMNM1S include:


• 600 V, 3 A IGBT-based power stage

• Overcurrent protection

• Under-voltage lockout

• Smart shut-down function

• Temperature sensing and overtemperature protection

• Interlocking function

• 3.3 V, 5 V TTL/CMOS compatible inputs with hysteresis

• Compact and fully isolated package

The module is also designed with an easy-to-use layout, which includes a heat sink, gate drivers, and all necessary protection features. This allows designers to reduce development time and speed up the time-to-market for their products.

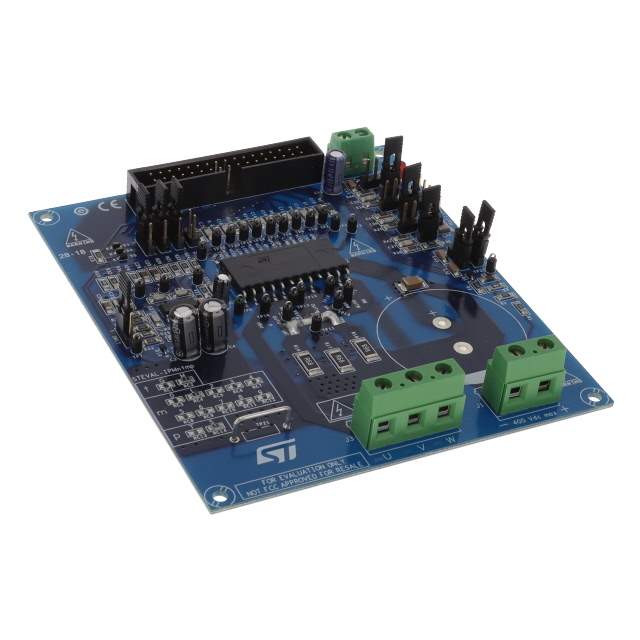

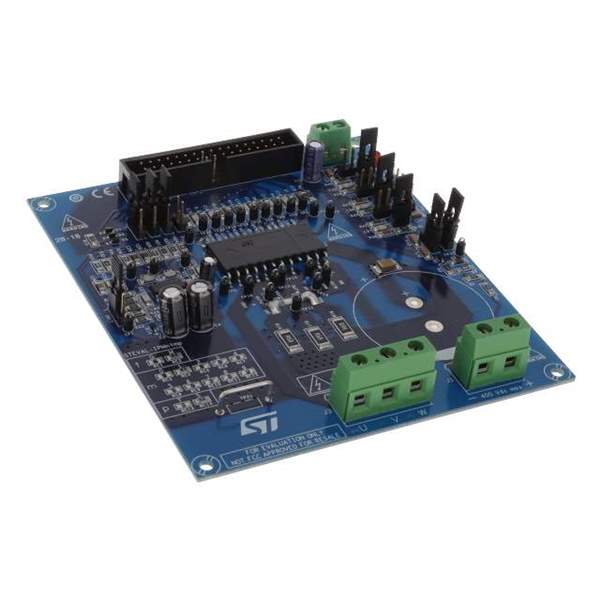

The STEVAL-IPMNM1S evaluation board is a ready-to-use circuit that allows designers to easily evaluate the features and performance of the integrated power module. The board includes a user-friendly interface and is equipped with connectors for motor connections and control signals, enabling quick setup and testing.

With its robust design and comprehensive feature set, the STEVAL-IPMNM1S from STMicroelectronics is an excellent choice for developers looking to create efficient, reliable, and cost-effective motor control solutions.
