Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Isolated; 2, Non-Isolated
Power - Output 5 W
Voltage - Output 5V, 15V, 15V
Current - Output 600mA, 66mA, 66mA
Voltage - Input 200V ~ 1200V
Regulator Topology Flyback
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L6565, STC04IE170HP
Other Names 497-6417,STEVAL-ISA036V1,-497-6417
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.41.0150
Win Source Part Number 1284234-STEVAL-ISA036V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA036V1 CAD Model

Description

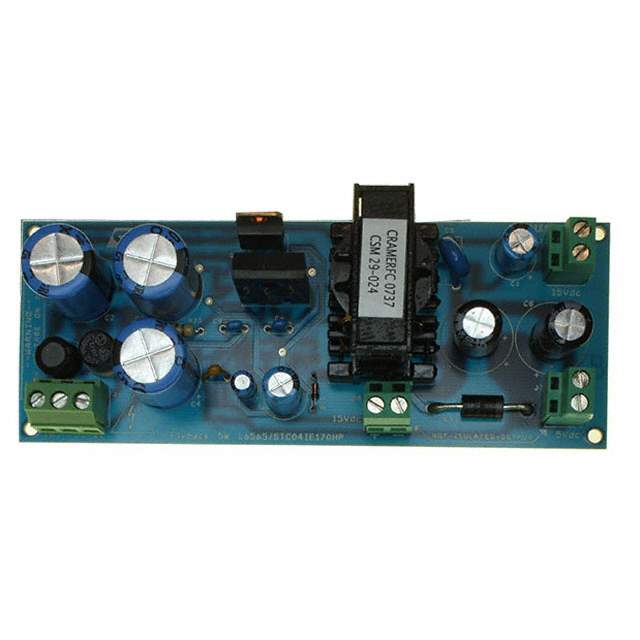

STEVAL-ISA036V1 - Evaluation Board from STMicroelectronics

The STEVAL-ISA036V1 is a highly efficient evaluation board designed by STMicroelectronics, tailored for those looking to evaluate the performance and capabilities of advanced power solutions. This evaluation board is based on the L6599AT, a high-performance resonant controller chip specifically designed for high-density power supply applications.

The STEVAL-ISA036V1 showcases a half-bridge resonant converter topology that enables it to deliver exceptional power efficiency and performance. The board is designed to operate over a wide input voltage range, making it suitable for a variety of applications, including flat-screen TV power supplies, high-efficiency adapters, and lighting applications.

One of the key features of this evaluation board is its ability to demonstrate the zero-voltage switching (ZVS) technique. ZVS minimizes switching losses and enhances overall efficiency, which is critical for reducing heat generation and improving the reliability of the power supply. The L6599AT controller integrates all the necessary functions for a complete and flexible solution, including a 0.6 A gate driver, which simplifies the design and reduces external component count.

The STEVAL-ISA036V1 also includes numerous protection features to ensure safe operation under various conditions. These protections include over-current protection, over-voltage protection, and thermal shutdown. The built-in protections not only safeguard the board but also provide valuable insights into the controller's behavior during fault conditions.

For engineers and designers looking to quickly prototype or test power supply solutions, the STEVAL-ISA036V1 provides an indispensable tool. The board is equipped with test points and connectors that allow for easy measurement and analysis of key parameters. Additionally, the evaluation board comes with comprehensive documentation, including schematics, BOM, and application notes, which significantly accelerates the development process.

In summary, the STEVAL-ISA036V1 from STMicroelectronics is an excellent platform for evaluating the performance of resonant power supplies, offering high efficiency, advanced features, and robust protection mechanisms. It serves as an invaluable resource for developing cutting-edge power solutions in a wide range of applications.
