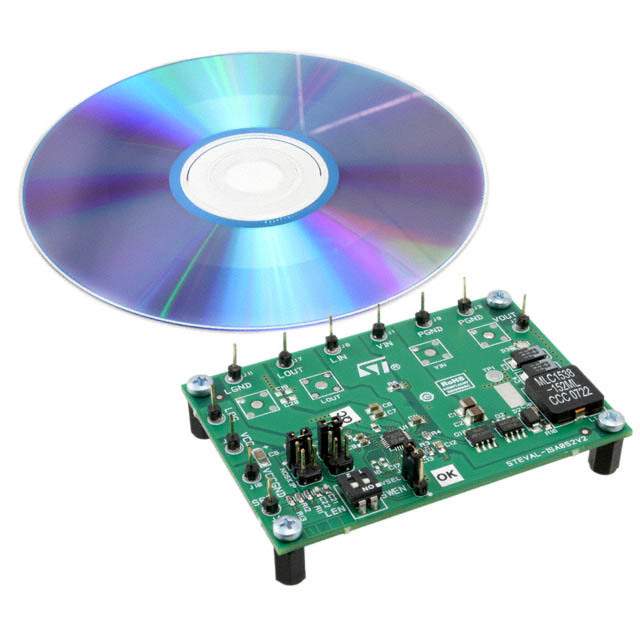

STEVAL-ISA052V2 - Highly Efficient Power Conversion Evaluation Board

The STEVAL-ISA052V2 is an advanced evaluation board designed by STMicroelectronics, tailored for engineers and developers who require a reliable and efficient power conversion solution. This board is particularly suitable for exploring and prototyping applications that demand high efficiency, compactness, and robust power management.

At the heart of the STEVAL-ISA052V2 is the innovative L7986A regulator, a step-down switching converter that provides a maximum output current of 3 A with an input voltage range of 4.5 V to 38 V. This wide input range makes the board versatile for a variety of power supply scenarios, including industrial, automotive, and consumer electronics.

The L7986A is highly efficient, with a synchronization feature that reduces noise and minimizes power loss, thereby ensuring optimal performance of the system. The board's design includes a 250 kHz fixed-frequency PWM voltage regulation mode, which strikes an excellent balance between efficiency and component size, thus reducing the overall footprint of the application.

The STEVAL-ISA052V2 evaluation board is equipped with numerous features that enhance its performance and user experience. These include:

• Adjustable output voltage from 0.8 V to VIN (input voltage), allowing for a wide range of output voltage settings to meet specific design requirements.
• Overcurrent and thermal protection, ensuring the longevity and reliability of the board under various operating conditions.
• Soft-start function, which prevents inrush current at startup and provides a smooth ramp-up of the output voltage.
• An external synchronization pin, enabling the switching frequency to be synchronized with an external clock to reduce electromagnetic interference (EMI).

The compact and flexible design of the STEVAL-ISA052V2 makes it an excellent choice for rapid prototyping, helping designers to quickly move from concept to working prototype. With its advanced features and robust design, the STEVAL-ISA052V2 from STMicroelectronics stands out as a superior evaluation tool for power conversion applications.
