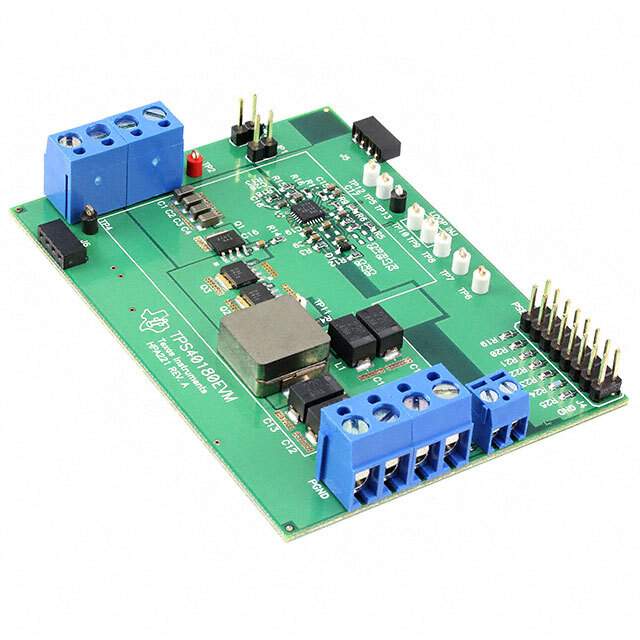

TPS40180EVM

Part No TPS40180EVM
Manufacturer Texas Instruments
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description EVAL MODULE FOR TPS40180 / TPS40180 DC to DC Controller 1.5VDC Output Evaluation Board
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.5V
Output Current 20A
Voltage - Input 10.8 V ~ 13.2 V
Regulator Topology Buck
Frequency - Switching 285kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part TPS40180
Win Source Part Number 797944-TPS40180EVM
Popularity Medium
Supply and Demand Status Limited
Family Name TPS40180
Introduction Date May 01, 2007
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian TPS40180EVM CAD Model

Description

The TPS40180EVM is a comprehensive evaluation module designed by Texas Instruments to facilitate the testing and performance assessment of their TPS40180, a high-performance synchronous buck DC/DC controller. This advanced tool is engineered for power system developers and engineers who require a reliable platform to evaluate the capabilities of the TPS40180 in a controlled and efficient manner.

Key Features

  • High Efficiency: The TPS40180EVM showcases the high efficiency of the TPS40180 controller, which is capable of driving N-channel MOSFETs and is optimized for converting input voltages ranging from 4.5V to 20V into lower output voltages at high currents.
  • Adjustable Output: Users can adjust the output voltage, enabling the evaluation of different voltage requirements for various applications, providing a versatile platform for testing.
  • Integrated Features: The module includes an array of features such as soft start, programmable under-voltage lockout, pre-bias startup, and power good output, which enhance its usability in real-world scenarios.
  • Thermal Management: With an emphasis on thermal performance, the TPS40180EVM is designed to handle significant power levels while maintaining operational stability.

Applications

The TPS40180EVM is ideal for exploring applications that require efficient power management solutions, including but not limited to:

  • Telecommunication and networking equipment
  • Server and storage systems
  • Industrial power supplies
  • FPGA, DSP, and ASIC power supplies

Why Choose the TPS40180EVM?

Choosing the TPS40180EVM for your evaluation needs offers numerous advantages:

  • Comprehensive Evaluation: It provides a complete solution for assessing the TPS40180 controller, reducing development time and accelerating product time-to-market.
  • Flexibility: The module's adjustable parameters and comprehensive feature set make it an adaptable tool for a wide range of power management tasks.
  • Support and Documentation: Texas Instruments offers extensive technical documentation, application notes, and customer support to assist with the evaluation process, ensuring a smooth experience.

In summary, the TPS40180EVM from Texas Instruments is an essential tool for engineers and developers seeking to leverage the performance and features of the TPS40180 synchronous buck DC/DC controller in their power supply designs.
