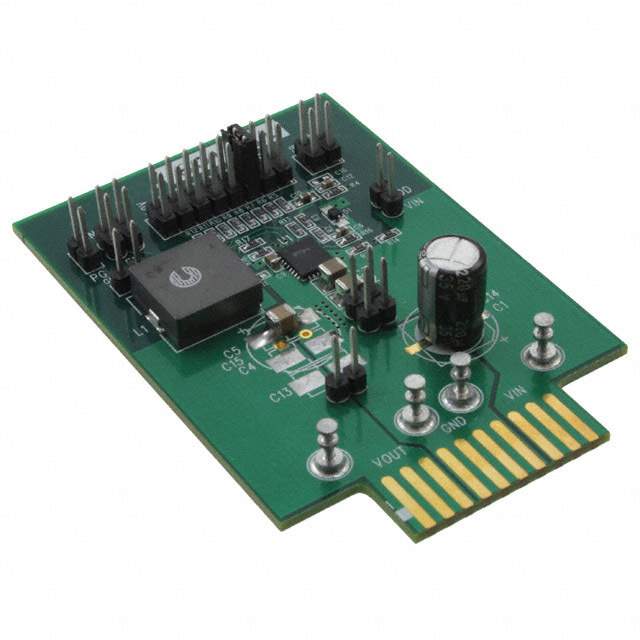

Microchip Technology's MIC26601YJL-EV Evaluation Board

The MIC26601YJL-EV is a comprehensive evaluation platform designed by Microchip Technology, tailored for engineers, designers, and hobbyists to assess the capabilities of the MIC26601 High-Efficiency, Wide Input Range, 6A Synchronous Buck Regulator. This evaluation board serves as a practical tool to facilitate testing and development, providing a hands-on experience with the regulator's performance in various conditions and configurations.

Key Features of the MIC26601YJL-EV

• High Current Capability: The board is designed to demonstrate the MIC26601 regulator's ability to deliver up to 6A of continuous output current, making it suitable for high-power applications.
• Wide Input Voltage Range: It supports an input voltage range from 4.5V to 26V, allowing flexibility in accommodating different power sources and system requirements.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 5.5V, providing versatility for various applications and enabling optimization for specific voltage needs.
• High Efficiency: The evaluation board highlights the MIC26601's efficient synchronous buck operation, which minimizes power losses and enhances system performance.
• Thermal Management: The board is designed with thermal considerations in mind, featuring an exposed pad package that aids in heat dissipation to maintain stable operation under high load conditions.
• Easy-to-Use: The MIC26601YJL-EV comes with user-friendly interfaces, including test points and jumper settings, for easy measurement and configuration without the need for complex setup procedures.

Applications

The MIC26601YJL-EV is ideal for a wide array of applications that require a reliable and efficient power supply solution. These include but are not limited to:

• Networking and Telecommunication Equipment
• Industrial Systems
• Computing Platforms
• FPGA, DSP, and ASIC Power Supplies

With its robust design and flexible features, the MIC26601YJL-EV evaluation board is an excellent resource for anyone looking to explore the functionalities and advantages of the MIC26601 synchronous buck regulator. Whether for preliminary testing, proof-of-concept demonstrations, or educational purposes, this board provides a solid foundation for developing efficient power management solutions with Microchip Technology's reliable components.
