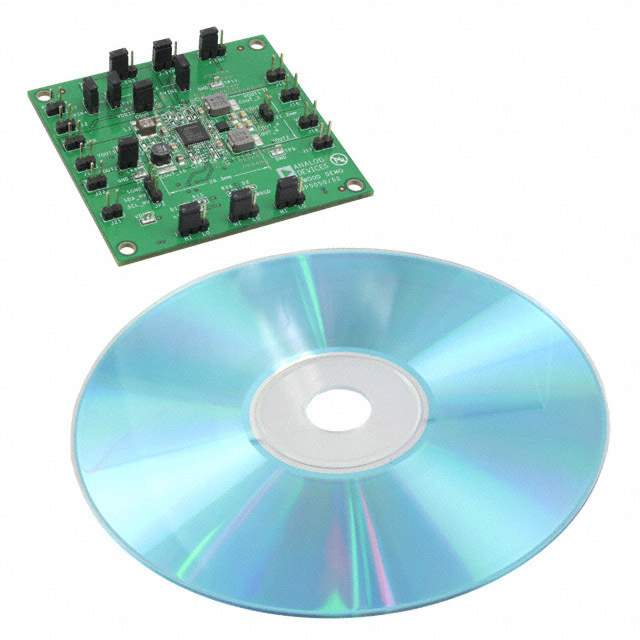

The ADP5050-EVALZ from Analog Devices Inc. is a comprehensive evaluation platform designed to showcase the functionality and versatility of the ADP5050 integrated power solution. This evaluation board provides engineers and designers a hands-on opportunity to test the capabilities of the ADP5050, which combines four high-performance buck regulators and one 200 mA low dropout (LDO) regulator in a compact 48-lead LFCSP package.

Key Features

• Integrated Power Solution: The ADP5050 integrates multiple regulators, reducing system complexity and board space requirements.
• Versatile Output Configuration: The board supports configurable output voltages for each of the four buck regulators, accommodating a variety of design needs.
• High Efficiency: The buck regulators operate with high efficiency, which is critical for thermal management and power conservation in electronic systems.
• Programmable Sequencing: Users can program the power-up and power-down sequence of the regulators to meet specific system requirements.
• Comprehensive Protection Features: The ADP5050 includes overcurrent protection (OCP), overvoltage protection (OVP), thermal shutdown, and other safety features to ensure reliable operation.

Applications

The ADP5050-EVALZ is suitable for a wide range of applications, including:

• Communication Infrastructure
• Industrial and Instrumentation Systems
• Healthcare and Medical Devices
• Automotive Infotainment and Body Electronics

Easy to Use

The evaluation board is designed for ease of use, with convenient test points and jumper settings that allow for quick setup and experimentation. The ADP5050-EVALZ operates over a wide input voltage range from 4.5 V to 15 V, making it suitable for a variety of input sources and systems.

Support and Resources

Analog Devices Inc. provides comprehensive support for the ADP5050-EVALZ, including detailed documentation, reference designs, and technical assistance to facilitate rapid design-in and troubleshooting.

With its robust feature set and flexible design options, the ADP5050-EVALZ evaluation board is an excellent tool for developing power-efficient solutions in a range of electronic applications.
