Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Linear Technology
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.8V
Output Current 8A
Voltage - Input 2.75 V ~ 4.5 V
Regulator Topology Buck
Frequency - Switching 550kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LTC3822-1
Win Source Part Number 783669-DC1105A
Popularity Medium
Supply and Demand Status Balance
Family Name DC1105A
Introduction Date August 12, 2009
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DC1105A CAD Model

Description

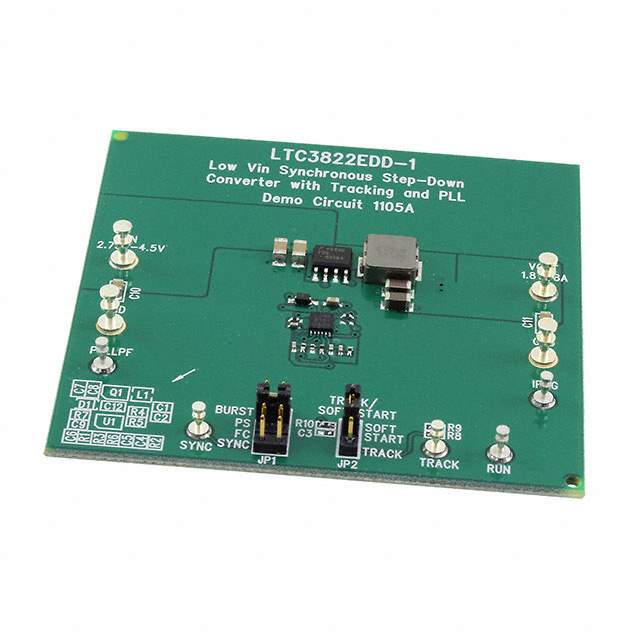

The DC1105A from Linear Technology is a high-performance, feature-rich demonstration board designed for evaluating the capabilities of Linear Technology's advanced power management and conversion solutions. This board is specifically tailored for engineers, developers, and technologists who seek a reliable and efficient platform for their power supply designs.

Key Features

  • High Efficiency: The DC1105A is engineered to provide exceptional power conversion efficiency, which is crucial for reducing heat generation and improving system reliability.
  • Versatile Input Range: This board supports a wide range of input voltages, making it suitable for a variety of applications and ensuring compatibility with different power sources.
  • Adjustable Output: Users can easily adjust the output voltage to meet the specific requirements of their application, offering flexibility in design and implementation.
  • Robust Protection Features: The DC1105A includes over-voltage, under-voltage, over-current, and thermal protection circuits to safeguard the board and connected components from potential damage.
  • Compact Design: Its compact size allows for easy integration into existing systems without the need for significant modifications or additional space.

Applications

The DC1105A is ideal for a wide range of applications, including but not limited to telecommunications, industrial control systems, data acquisition systems, and portable devices. Its ability to deliver stable and precise power makes it an excellent choice for sensitive electronic equipment that requires consistent operation.

Technical Specifications

The demonstration board comes with comprehensive technical documentation that provides detailed specifications, recommended operating conditions, and application notes. Users are encouraged to review these documents thoroughly to ensure optimal performance and compatibility with their specific use case.

Support and Resources

Linear Technology provides extensive support for the DC1105A, including technical assistance from experienced engineers, a user-friendly manual, and access to a community forum for sharing insights and troubleshooting tips. This level of support ensures a smooth development process and helps users quickly resolve any issues that may arise.
