Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Linear Technology
Main Purpose DC/DC, Step Up
Outputs and Type 2, Non-Isolated
Voltage - Output 3.3V
Output Current 100mA
Voltage - Input 3 V ~ 4.2 V
Regulator Topology Boost
Frequency - Switching 1.7MHz
Board Type Fully Populated
Supplied Contents Board(s)

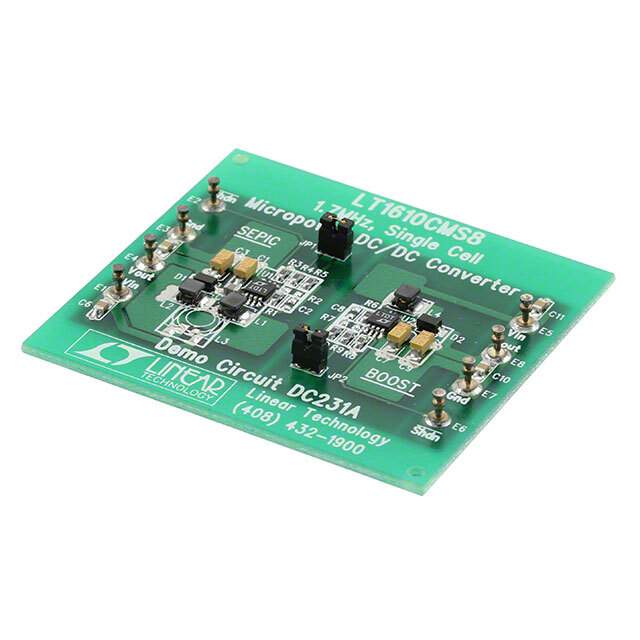

Utilized IC / Part LT1610
Win Source Part Number 780569-DC231A
Popularity Medium
Supply and Demand Status Balance
Family Name DC231A
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DC231A CAD Model

Description

The Linear Technology DC231A is a versatile and efficient power module designed to cater to a broad range of applications requiring reliable power management solutions. This high-performance module is an ideal choice for designers looking for a compact, low-noise, and easy-to-use power supply that can deliver excellent power conversion efficiency.

Key Features

  • Integrated Design: The DC231A integrates the inductor, power switches, and all supporting components into a single package, reducing design complexity and saving board space.
  • High Efficiency: With its advanced design, the module achieves high efficiency, which helps in reducing power losses and improving overall system performance.
  • Low Noise Operation: Engineered to minimize electromagnetic interference (EMI) and ripple, the DC231A is suitable for noise-sensitive applications such as precision instrumentation and audio equipment.
  • Wide Input Voltage Range: The module supports a wide input voltage range, accommodating various supply voltages and enabling flexibility in system design.
  • Adjustable Output Voltage: Users can adjust the output voltage to meet the specific requirements of their application, ensuring compatibility with a variety of loads.
  • Thermal Protection: Built-in thermal protection safeguards the module from overheating, enhancing the reliability and longevity of both the power module and the overall system.
  • Simple Enable/Shutdown Feature: The DC231A includes an enable pin for easy on/off control, allowing for efficient power management and conservation when the module is not in use.

Applications

The DC231A is designed to be a versatile power solution that can be used in a multitude of applications. It is particularly well-suited for:

  • Telecommunications
  • Industrial Equipment
  • Networking Devices
  • Portable Devices
  • Medical Equipment

Conclusion

In summary, the Linear Technology DC231A power module is an excellent choice for designers and engineers seeking a high-efficiency, low-noise power supply. Its integrated design, wide input voltage range, and customizable output voltage make it a flexible and reliable solution for a diverse array of electronic devices and systems.
