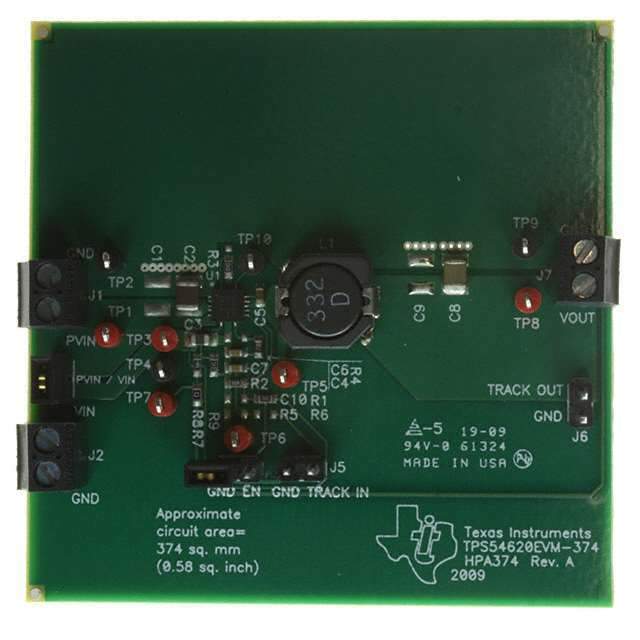

The TPS54620EVM-374 from Texas Instruments is a fully assembled and tested circuit for evaluating the TPS54620, a highly efficient, synchronous step-down DC/DC converter. This evaluation module (EVM) is designed to help both novice and expert designers quickly and easily assess the capabilities of the TPS54620 converter in a variety of applications.

Key Features

• Input Voltage Range: The EVM operates over a wide input voltage range from 4.5V to 17V, making it suitable for a variety of power sources.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 6V, allowing for a broad range of use cases and compatibility with different ICs and systems.
• High Efficiency: The TPS54620 integrates low RDS(on) switches enabling high efficiency and reduced external component count.
• Thermal Performance: Excellent thermal performance is achieved through the use of a thermally enhanced QFN package.
• Integrated Features: The device includes features such as soft start, UVLO, overcurrent, and thermal shutdown protection.
• Switching Frequency: The TPS54620 operates at a fixed 500 kHz switching frequency, which helps to optimize efficiency and allows for the use of small external components.

Applications

The TPS54620EVM-374 is ideal for powering a wide array of electronics, from simple consumer gadgets to complex industrial systems. Its versatility makes it suitable for the following applications:

• Point of Load Conversions
• Networking and Telecommunication Equipment
• Consumer Electronics
• Industrial and Automotive Electronics

Design and Layout

The EVM includes an easy-to-use layout with clearly marked connections for input, output, and feedback, facilitating quick setup and experimentation. The layout is optimized for excellent power dissipation and low electromagnetic interference (EMI), ensuring reliable and consistent performance in real-world applications.

Support and Resources

For additional information, designers can access a wealth of resources provided by Texas Instruments, including the TPS54620 datasheet, user guides, and design tools. Technical support is also available to assist with any aspect of the design process, from initial concept to final implementation.
