Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer STMicroelectronics
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 3.3V
Output Current 1.5A
Voltage - Input 4 V ~ 36 V
Regulator Topology Buck
Frequency - Switching 500kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L5973A
Win Source Part Number 793793-STEVAL-ISA106V1
Popularity Medium
Supply and Demand Status Balance
Family Name STEVAL-ISA106V1
Introduction Date October 21, 2011
ECCN EAR99
Country of Origin Italy
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA106V1 CAD Model

Description

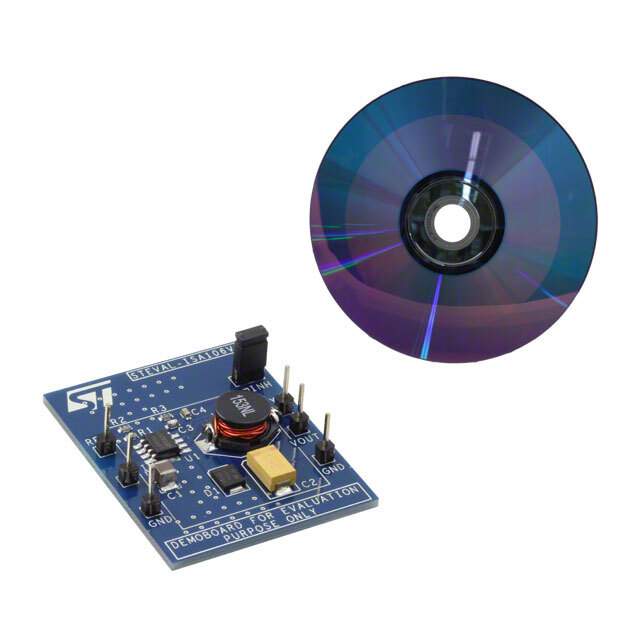

The STEVAL-ISA106V1 is a highly efficient, power management evaluation board designed by STMicroelectronics. This compact and versatile board is based on the L7986A, a step-down switching regulator capable of delivering up to 3 A of continuous current to the load with excellent line and load regulation.

With an input voltage range from 4.5 V to 38 V, the STEVAL-ISA106V1 is perfect for a variety of applications, from industrial systems to consumer electronics, where power efficiency and reliability are crucial. The board is designed to help engineers and designers quickly prototype and test their power supply solutions, significantly reducing development time and cost.

Key Features:

  • High-Efficiency Converter: The L7986A regulator offers up to 95% efficiency, which is beneficial for thermal management and energy savings.
  • Adjustable Output Voltage: Users can set the output voltage from 0.8 V to VIN, thanks to the onboard feedback network, accommodating a wide range of applications.
  • Thermal Protection: The board includes thermal shutdown and current limiting features, ensuring the protection and longevity of both the board and the end application.
  • Flexible Design: The evaluation board comes with several configurable options, including Enable pin and Soft-start time settings, providing designers with flexibility during the testing phase.
  • Compact Size: The small form factor of the board makes it ideal for integrating into space-constrained applications.

The STEVAL-ISA106V1 is more than just a simple power supply module; it is a testament to STMicroelectronics' commitment to delivering high-performance, practical solutions to the market. By utilizing this evaluation board, designers can ensure that their products are powered reliably and efficiently, paving the way for innovative electronic designs.
