Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Main Purpose AC/DC, Secondary Side
Outputs and Type 1, Non-Isolated
Voltage - Input 4.5V ~ 32V
Regulator Topology Resonant
Frequency - Switching 500kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part SRK2001, STL140N4LLF5
Other Names 497-15694
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284292-STEVAL-ISA168V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA168V1 CAD Model

Description

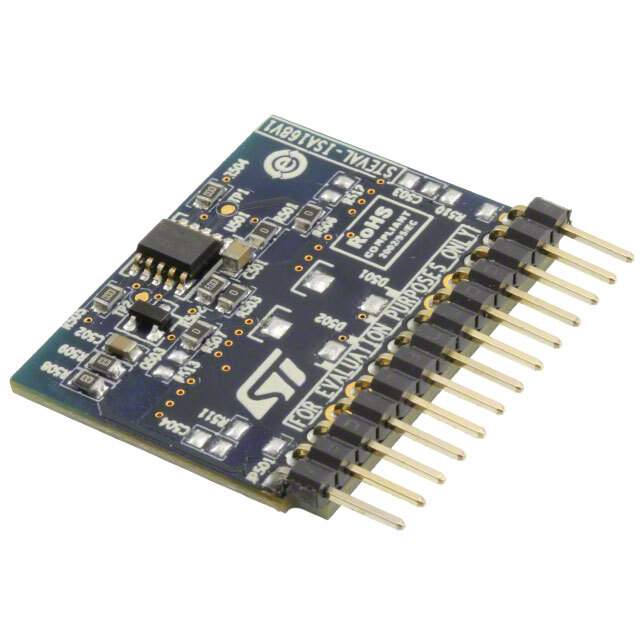

Introducing the STEVAL-ISA168V1 from STMicroelectronics

The STEVAL-ISA168V1 is a highly efficient power management integrated circuit evaluation board designed by STMicroelectronics, a global leader in semiconductor solutions. This compact and versatile evaluation platform is specifically tailored for testing and prototyping with the L7987L, a powerful step-down switching regulator capable of delivering up to 3 A of continuous current to the load.

Robust and Flexible Power Solution

The L7987L regulator on the STEVAL-ISA168V1 operates over a wide input voltage range from 4.5 V to 61 V, making it ideal for a variety of applications that require a stable and efficient low voltage supply. This includes industrial control systems, automotive electronics, and consumer applications where reliability and efficiency are paramount.

Highly Configurable and Easy to Use

Engineered for flexibility, the STEVAL-ISA168V1 allows for easy adjustment of the output voltage, enabling users to tailor the power supply to their specific needs. The board also features a range of configurable options, including soft-start, sequencing, and enabling/disabling functions, providing developers with the tools to optimize the power management for their particular application.

Advanced Features for Enhanced Performance

The L7987L boasts an impressive array of features designed to enhance performance and safety. These include pulse-by-pulse current limiting, overcurrent protection, thermal shutdown, and a power good signal for output voltage monitoring. The STEVAL-ISA168V1 showcases all these features, allowing designers to thoroughly evaluate the L7987L's capabilities.

Compact Design for Easy Integration

STMicroelectronics has crafted the STEVAL-ISA168V1 with a compact and thermally efficient layout. The evaluation board's small footprint allows it to be easily integrated into existing prototypes or used as a standalone power supply module in space-constrained applications.

Support and Resources

STMicroelectronics provides comprehensive support for the STEVAL-ISA168V1, including detailed documentation, reference designs, and technical assistance, ensuring that developers have all the resources they need to successfully integrate the board into their projects.

Whether you're developing the next generation of consumer electronics or working on rugged industrial equipment, the STEVAL-ISA168V1 offers a reliable and efficient solution for your power management needs.
