Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 3.3V
Current - Output 400mA
Voltage - Input 4.5V ~ 36V
Regulator Topology Buck
Frequency - Switching 250kHz ~ 600kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part A6984
Base Product Number STEVAL
Other Names 497-17252,-1138-STEVAL-ISA200V1
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284249-STEVAL-ISA200V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA200V1 CAD Model

Description

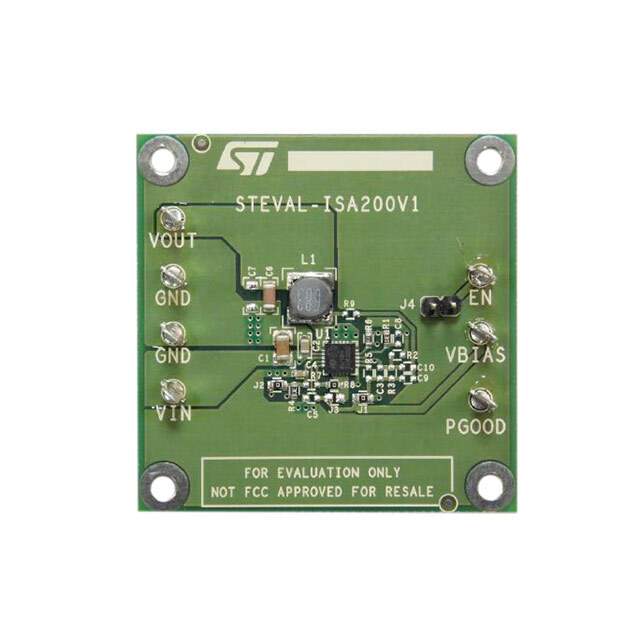

The STEVAL-ISA200V1 from STMicroelectronics is a state-of-the-art power conversion solution designed for a wide array of applications that require efficient and reliable power supply. This evaluation board showcases the capabilities of ST's advanced power management ICs, providing a platform for engineers and designers to explore high-efficiency power conversion designs.

At the heart of the STEVAL-ISA200V1 is a synchronous step-down switching regulator that is optimized for compactness and high efficiency. The board operates over a wide input voltage range, making it suitable for a broad spectrum of power sources and able to withstand fluctuations in input power without compromising on performance.

The STEVAL-ISA200V1 boasts an impressive array of features that make it a versatile choice for power supply design. It offers adjustable output voltage, enabling customization for specific application requirements. Additionally, the board includes overcurrent and overtemperature protection, ensuring the safety and longevity of both the power supply and the end application.

With its excellent thermal performance and low quiescent current, the STEVAL-ISA200V1 is particularly well-suited for energy-sensitive applications. The board's layout is designed for optimal heat dissipation, which is critical for maintaining efficiency and reliability during prolonged operation.

The STEVAL-ISA200V1 also features a range of connectivity options for easy integration into existing systems. It includes test points for monitoring voltage and current, and it is compatible with various external control signals for enhanced functionality. The evaluation board is supported by comprehensive documentation, including schematics, bill of materials, and application notes, which accelerates the development process for engineers.

In summary, the STEVAL-ISA200V1 from STMicroelectronics is an exemplary evaluation board for anyone looking to develop high-efficiency power supplies. Its robust design, coupled with ST's cutting-edge technology, provides a reliable and flexible platform for innovating power conversion solutions across a multitude of applications.
