Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Linear Voltage Regulators
Mfr STMicroelectronics
Package Bulk
Channels per IC 1 - Single
Voltage - Output 1.8V
Current - Output 200mA
Voltage - Input 1.5V ~ 5.5V
Regulator Type Positive Fixed
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LD39020
Base Product Number STEVAL
Other Names 497-16876
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283812-STEVAL-ISB037V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISB037V1 CAD Model

Description

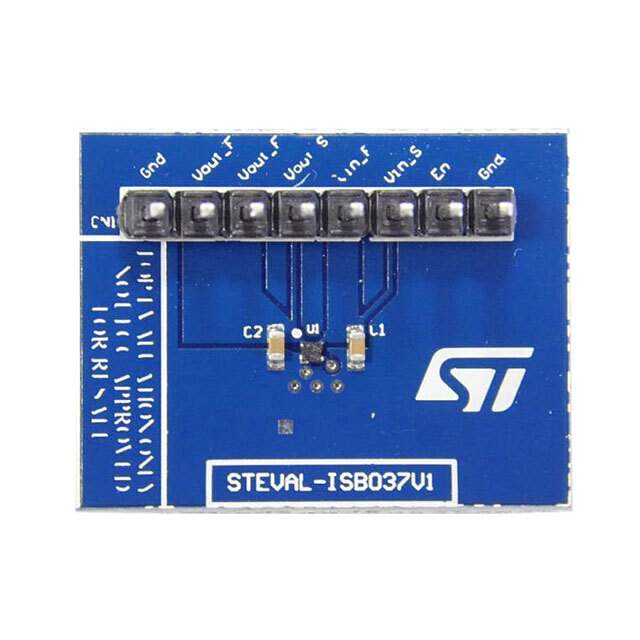

STEVAL-ISB037V1 - Wireless Charging Evaluation Board

The STEVAL-ISB037V1 from STMicroelectronics is an innovative evaluation board designed for wireless charging applications. This versatile board is a comprehensive solution for developers looking to explore and implement wireless power transfer technologies in their products.

Key Features

  • Wireless Charging Standard: The evaluation board is compliant with the Qi wireless charging standard, ensuring compatibility with a wide range of wireless charging devices.
  • Power Transfer: It supports up to 5W of power transfer, making it suitable for a variety of applications including smartphones, wearables, and medical devices.
  • Transmitter and Receiver: The STEVAL-ISB037V1 includes both a transmitter board and a receiver board, allowing users to fully evaluate the wireless charging process.
  • STWBC: The board is powered by ST's STWBC digital controller for wireless battery charger transmitters, which provides an efficient power transfer and ensures a controlled charging process.
  • Customizable Firmware: Users can take advantage of the STSW-STWBC firmware package, which allows for customization and optimization of the charging performance and behavior.
  • Coil Design: The evaluation kit comes with a well-designed coil and a metal shield, which is optimized for best performance and minimal electromagnetic interference.
  • LED Indicators: Onboard LED indicators provide visual feedback for power presence, charging status, and fault conditions, simplifying the debugging process.

Applications

The STEVAL-ISB037V1 is ideal for developers working on wireless charging solutions for consumer electronics, portable devices, and any other applications that could benefit from the convenience of wireless power transfer. Its comprehensive feature set and compliance with the Qi standard make it a strong foundation for developing reliable and efficient wireless charging systems.

Conclusion

With its combination of a Qi-compliant design, powerful STWBC controller, and customizable firmware, the STEVAL-ISB037V1 evaluation board from STMicroelectronics is a top-tier solution for anyone looking to delve into the world of wireless charging technology. Whether for prototyping or educational purposes, this evaluation board offers a practical and efficient path to integrating wireless charging capabilities into a wide array of electronic devices.
