Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Package Bulk
Sensor Type Magnetic, Magnetometer
Sensing Range ±4, 8, 12, 16 gauss
Interface I2C, SPI
Sensitivity 6842LSB/gauss, 3421LSB/gauss, 2281LSB/gauss, 1711LSB/gauss
Voltage - Supply 1.9V ~ 3.6V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part LIS3MDL
Base Product Number STEVAL
Other Names STEVAL-MKI137V1,497-14106
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283711-STEVAL-MKI137V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI137V1 CAD Model

Description

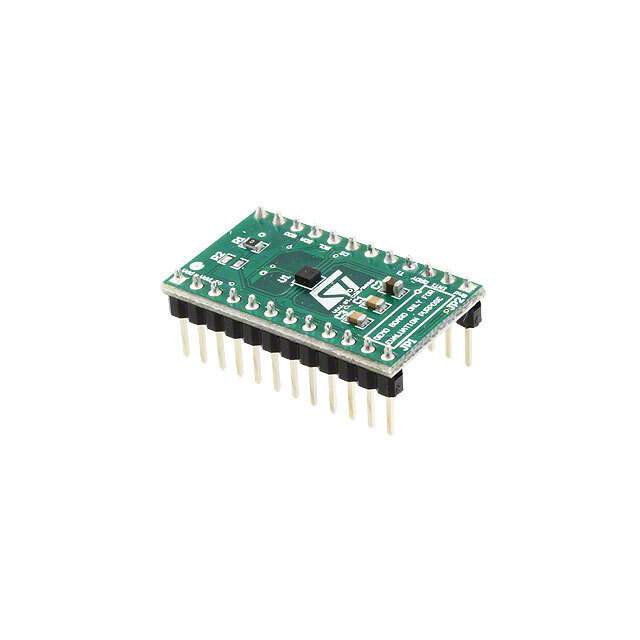

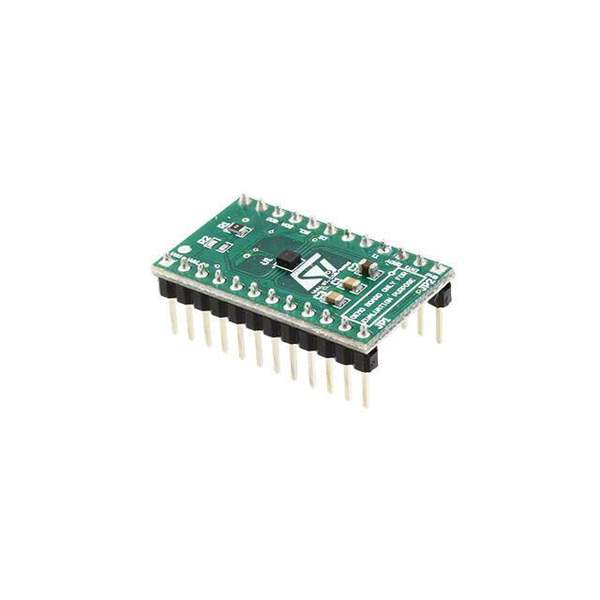

Introducing the STEVAL-MKI137V1 Adapter Board

The STEVAL-MKI137V1 is a compact and versatile adapter board designed by STMicroelectronics to facilitate the evaluation of MEMS devices in the LSM6DSO iNEMO inertial module family. This innovative product is specifically engineered to provide users with a simple and effective way to interface with the LSM6DSO module, which is known for its high performance in terms of 3D accelerometer and 3D gyroscope features.

Key Features of the STEVAL-MKI137V1

  • Compatibility: The adapter board is fully compatible with the STEVAL-MKI109V3 motherboard, which is part of the STMicroelectronics' plug-and-play iNEMO suite of evaluation boards.
  • LSM6DSO Integration: It is designed to host the LSM6DSO, a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope, enabling high-resolution motion tracking and advanced power-saving features.
  • Easy Connection: Equipped with a standard DIL 24-pin socket, this adapter board ensures seamless and straightforward connection to the STEVAL-MKI109V3 motherboard or any custom application.
  • Software Support: The STEVAL-MKI137V1 is supported by the Unico GUI software, which provides a user-friendly interface for device configuration and data visualization, simplifying the process of device testing and data analysis.

Applications of the STEVAL-MKI137V1

With its high precision and low power consumption, the STEVAL-MKI137V1 is an ideal tool for a wide range of applications, including:

  • Gaming and virtual reality input devices
  • Inertial navigation systems for drones and other unmanned vehicles
  • Indoor navigation and smart pedestrian dead-reckoning
  • Vibration monitoring and compensation
  • IoT devices requiring motion sensing capabilities

The STEVAL-MKI137V1 adapter board is a testament to STMicroelectronics' commitment to providing advanced solutions for motion sensing and control. Its ease of use, combined with the advanced capabilities of the LSM6DSO, makes it an essential tool for developers and engineers looking to leverage the power of MEMS technology in their next project.

For further information and to view detailed technical specifications, visit the STMicroelectronics website or contact their support team.
