Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Package Bulk
Sensor Type Accelerometer, 3 Axis
Sensing Range ±100g
Interface I2C, SPI
Sensitivity 750 mV/g
Voltage - Supply 2.16V ~ 3.6V
Supplied Contents Board(s)
Utilized IC / Part H3LIS100DL
Base Product Number STEVAL
Other Names 497-16254
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9023.00.0000
Win Source Part Number 1283730-STEVAL-MKI166V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI166V1 CAD Model

Description

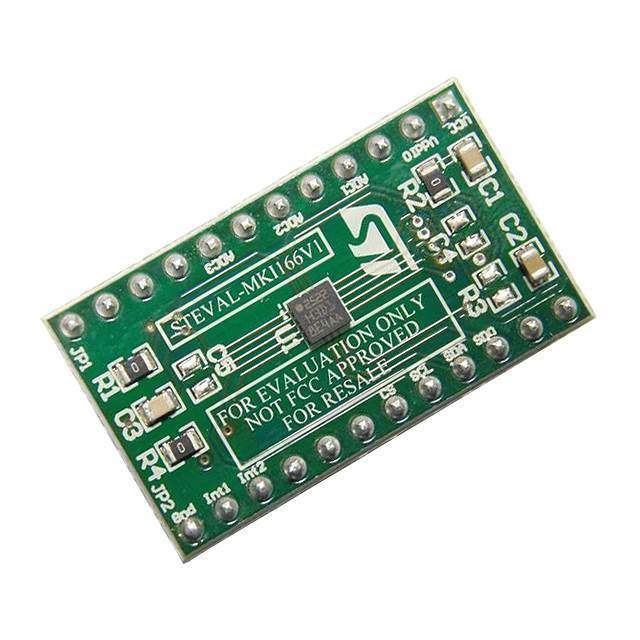

STEVAL-MKI166V1 - Motion Sensor Evaluation Board from STMicroelectronics

The STEVAL-MKI166V1 is a comprehensive evaluation platform designed by STMicroelectronics to provide designers and engineers with a seamless experience in testing and prototyping with the advanced LIS2DW12 three-axis accelerometer. This compact and versatile evaluation board is part of the ST's MEMS sensors' portfolio and is specifically tailored for motion-sensing applications across a wide range of industries.

Key Features

  • High-Performance Accelerometer: The board integrates the LIS2DW12, a high-precision three-axis digital accelerometer featuring low-power operation and advanced power-saving features.
  • Multiple Operating Modes: Users can leverage various operating modes, including high-performance, normal, low-power, and ultra-low-power, making it suitable for battery-operated IoT devices.
  • Wide Range of Measurement: The accelerometer can measure accelerations with full-scale ranges of ±2g, ±4g, ±8g, and ±16g, providing flexibility for various application requirements.
  • Embedded Features: The LIS2DW12 comes with embedded functions such as free-fall detection, motion detection, and programmable threshold interrupt functions that enhance application responsiveness.
  • Configurable Resolution: It offers 12-bit or 14-bit resolution, which allows for precision and accuracy in data collection.
  • Compatibility: The STEVAL-MKI166V1 is designed to be compatible with the STEVAL-MKI109V3 motherboard, which facilitates easy integration and testing with the Unico GUI software for in-depth analysis.

Applications

The board is suitable for a myriad of applications, including but not limited to:

  • IoT and smart sensing devices
  • Wearable and fitness gadgets
  • Smartphone and tablet motion analysis
  • Industrial and automotive systems
  • Gaming and virtual reality input devices

Design Support

STMicroelectronics provides extensive support for the STEVAL-MKI166V1, including hardware design guidelines, firmware libraries, and software tools that streamline the development process and reduce time-to-market for products incorporating the LIS2DW12 accelerometer.
