Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 4
Max On Resistance 5.2 Ohm
Channel-to-Channel Matching (ΔRon) 300 mOhm
Single Supply Voltage (V+) 1.65 V to 4.3 V
Max Switch Time (Ton,Toff) 15ns, 13ns
-3db Bandwidth 800MHz
Charge Injection 5pC
Channel Capacitance(CS off, CD off) 5pF
Max Leakage Current (IS off) 20nA
Crosstalk -78dB @ 1MHz
Temperature Range - Operating -55°C to 125°C (TA)

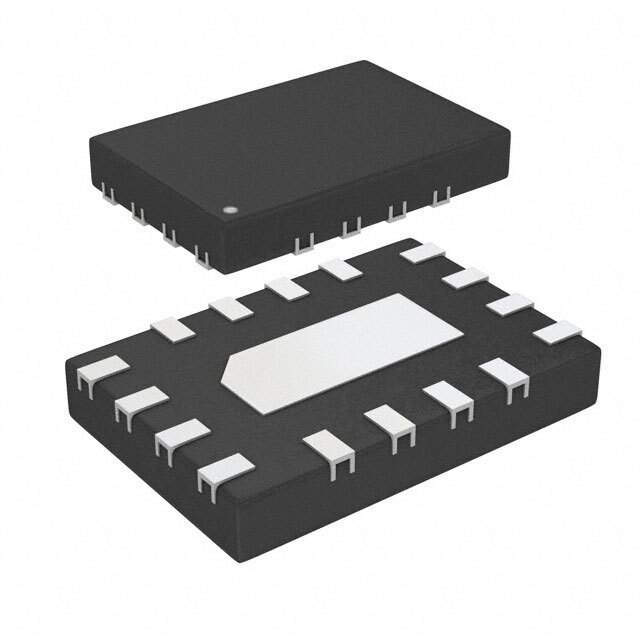

Case / Package 16-QFN (2.6x1.8)
Win Source Part Number 031187-STG3692QTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STG3692QTR CAD Model

Description

The STG3692QTR is a high-performance, dual Single Pole Double Throw (SPDT) switch designed by STMicroelectronics, crafted for precision and reliability in switching applications. This versatile component is well-suited for a wide range of uses, including but not limited to signal routing in communication devices, audio and video switching, and any other application requiring a high-bandwidth switch.

Key Features

  • Low On Resistance: The STG3692QTR boasts an exceptionally low on resistance (R<sub>ON), typically around 0.37 Ω, providing efficient signal switching with minimal signal attenuation.
  • Wide Operating Voltage Range: It operates over a broad voltage range from 1.65V to 4.3V, making it suitable for various power environments and allowing for flexible design options.
  • High Current Carrying Capacity: The switch can handle high currents, which is critical for applications that require high-speed data transmission or high-quality audio signals.
  • ESD Protection: Integrated ESD protection circuits safeguard the device against electrostatic discharges, ensuring the longevity and reliability of both the switch and the end product.
  • Break-Before-Make Switching: This feature prevents signal overlap when switching between paths, eliminating potential signal corruption.
  • Space-Saving Package: The STG3692QTR comes in a compact QFN-10L 1.8x1.4 package, which is ideal for space-constrained applications.

Applications

The versatility of the STG3692QTR allows it to be used in a variety of applications, including:

  • Mobile phones and personal communication devices
  • Portable multimedia players
  • Audio and video signal routing
  • Data acquisition systems
  • Computer peripherals

With its robust design and comprehensive feature set, the STG3692QTR from STMicroelectronics stands out as a superior choice for designers looking for a reliable dual SPDT switch. Whether for routing audio signals in a smartphone or managing data paths in sophisticated electronics, the STG3692QTR delivers performance that can be trusted.
