Products specifications

Manufacturer STMicroelectronics
Standard Package 11
Category Discrete Semiconductor Products
Family Power Drivers - Modules
Series SLLIMM
Type IGBT
Configuration 3 Phase
Current 10A
Voltage 600V
Voltage - Isolation 2500VDC
Package PCB Module
Catalog SLLIMM Series
Win Source Part Number 066379-STGIPS10K60A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STGIPS10K60A CAD Model

Description

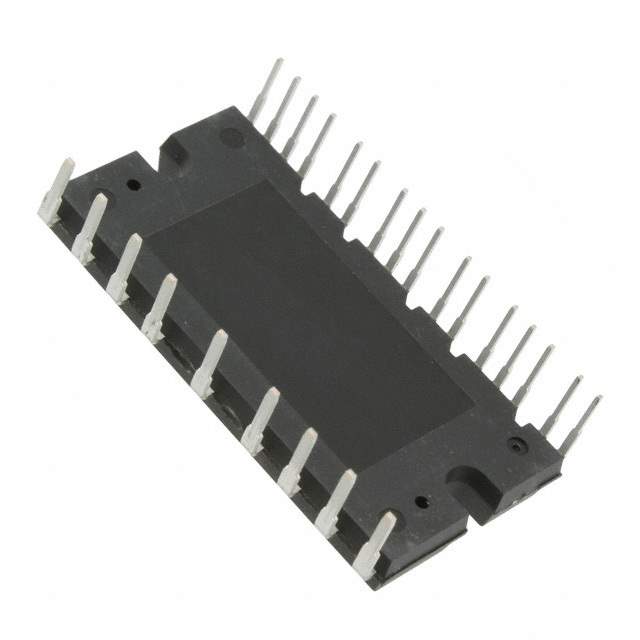

STGIPS10K60A - A Robust IGBT Intelligent Power Module from STMicroelectronics

The STGIPS10K60A is a cutting-edge Intelligent Power Module (IPM) developed by STMicroelectronics, designed to offer an efficient and compact solution for driving three-phase motors in a wide range of applications. This IPM integrates a three-phase inverter power stage with gate drivers and protection features into a single, highly reliable package, making it an ideal choice for designers looking to improve system performance while reducing time-to-market.

Main Features

  • Power Stage: The STGIPS10K60A features a 600V, 10A IGBT inverter power stage, offering excellent thermal performance and high efficiency. This makes it suitable for moderate power applications, such as home appliances, air conditioners, and industrial motor drives.
  • Advanced Gate Drivers: Built-in gate drivers provide optimized IGBT switching, reducing electromagnetic interference (EMI) and power losses. The gate drivers are also equipped with smart shutdown functions to ensure safe operation under fault conditions.
  • Compact Design: The module comes in a 25-pin SDIP package, which minimizes the PCB footprint and simplifies the design of the power stage in the application circuit.
  • Overcurrent Protection: The device includes cross-conduction and under-voltage lockout protections, enhancing system reliability and safety.
  • Temperature Monitoring: An integrated temperature-sensing diode allows for real-time monitoring of the module's temperature, providing an additional layer of protection against thermal overload.

Applications

The versatility of the STGIPS10K60A makes it suitable for various applications that require efficient and reliable motor control. Some of the typical applications include:

  • Washing machines
  • Refrigerators
  • Fans and blowers
  • Air conditioners
  • General-purpose drives

Conclusion

With its robust design, integrated features, and ease of use, the STGIPS10K60A from STMicroelectronics provides an all-in-one solution for designers who demand high performance and reliability in their motor control applications. By incorporating this intelligent power module into your design, you can achieve a more compact, efficient, and cost-effective motor drive system.
