STH400N4F6-6 Power MOSFET by STMicroelectronics

The STH400N4F6-6 is a high-performance N-channel Power MOSFET brought to you by STMicroelectronics, a leader in semiconductor solutions. This MOSFET is designed to meet a wide range of energy-efficient applications, particularly focusing on high switching efficiency and reliability. It is an ideal choice for power supply, motor control, automotive, and other power-intensive applications.

This Power MOSFET is built using STMicroelectronics' advanced MDmesh™ technology, which combines low on-resistance (R<sub>DS(on)) with a high threshold voltage (V<sub>th), making it an excellent performer in terms of switch-on and switch-off times. The STH400N4F6-6 is specifically designed to achieve extremely low gate charge (Q<sub>g) and low capacitances, which further enhances its efficiency in fast-switching applications.

Featuring a maximum continuous drain current (I<sub>D) of 80 A and a drain-source voltage (V<sub>DS) of up to 40 V, the STH400N4F6-6 can handle high current and voltage levels, making it robust for challenging environments. The device operates over a wide temperature range, ensuring reliable performance under varying conditions.

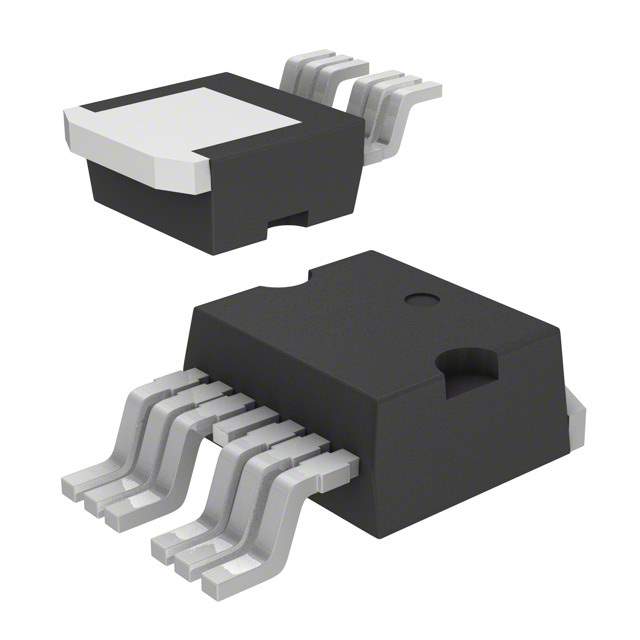

The STH400N4F6-6 is housed in an H2PAK-6 package, which is designed for improved thermal performance and compactness, allowing for better space utilization in circuit designs. The package is also RoHS compliant and Halogen-free, ensuring it meets the latest environmental standards and is suitable for use in environmentally sensitive applications.

Key features of the STH400N4F6-6 include:

• Low threshold voltage (V<sub>th) for improved conduction
• High drain current (I<sub>D) capability for high power applications
• Low gate charge (Q<sub>g) for faster switching
• 100% avalanche tested for enhanced reliability
• Low intrinsic capacitances for reduced switching losses
• High dv/dt capability for robustness against harsh conditions

With its advanced features and robust design, the STH400N4F6-6 from STMicroelectronics is an excellent choice for engineers looking to optimize their power management systems for efficiency and reliability.
