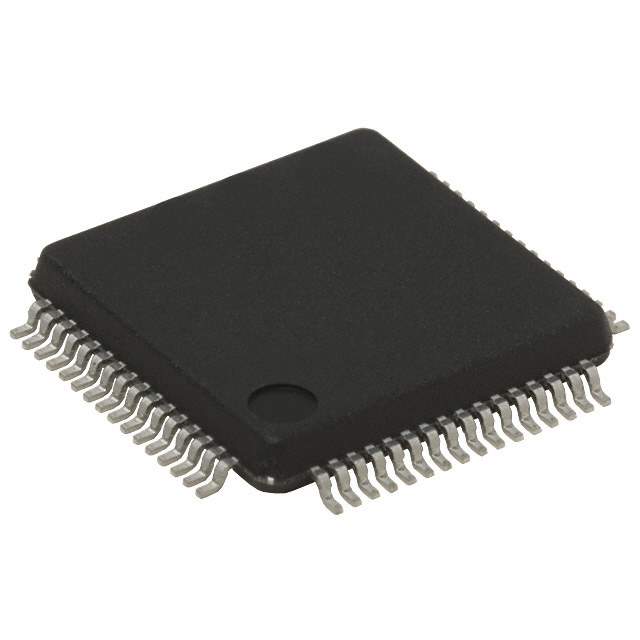

STM32F205RGY6 Microcontroller - STMicroelectronics
The STM32F205RGY6 is a high-performance microcontroller from STMicroelectronics, designed to offer a balanced combination of computing power, energy efficiency, and peripheral integration. This microcontroller is part of the STM32F2 series, which is based on the ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 120 MHz. The Cortex-M3 core features a single-cycle multiplication and hardware division, which makes it an ideal choice for applications that require complex computations and high-speed operations.
The STM32F205RGY6 comes with a rich set of peripherals that are suitable for a wide range of applications, from industrial control systems to medical devices. It includes 1MB of flash memory and 128KB of SRAM, providing ample space for storing code and data. The device also features a flexible static memory controller that supports Compact Flash, SRAM, PSRAM, NOR, and NAND memories.
Connectivity options are extensive, with support for USB OTG full-speed and high-speed, three I2C interfaces, four USARTs, and two UARTs. It also includes three SPIs, two CAN interfaces, and an Ethernet MAC with a dedicated DMA controller for high-speed network communications. The STM32F205RGY6 also offers a 12-bit ADC with 24 channels, two DACs, and a range of timers, including general-purpose and advanced-control timers, which are suitable for a wide array of timing and control tasks.
In terms of security and system integrity, the STM32F205RGY6 provides a hardware-based random number generator and a CRC calculation unit. It also features a memory protection unit (MPU) that enhances the application security by preventing unauthorized access to memory regions.
The STM32F205RGY6 is designed with power efficiency in mind, featuring several power-saving modes, including Sleep, Stop, and Standby modes, which help reduce power consumption in idle or low-activity states. This microcontroller is available in a fine-pitch BGA package, which enables compact PCB designs and is suitable for space-constrained applications.
Overall, the STM32F205RGY6 is a robust microcontroller choice for designers who require a rich feature set, high processing power, and a flexible set of peripherals to bring their innovative ideas to life.
