Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 209MHz, 800MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps (1)
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -20°C ~ 105°C (TJ)
Security Features ARM TZ

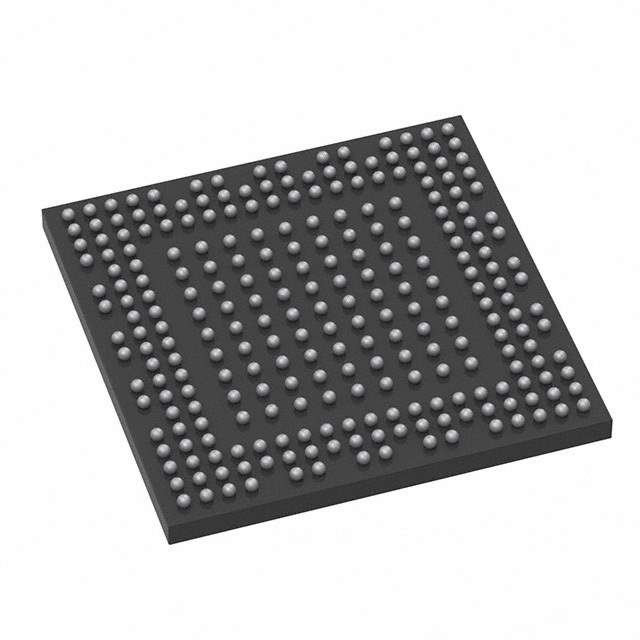

Package / Case 257-TFBGA
Supplier Device Package 257-TFBGA (10x10)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-STM32MP151DAD1
Standard Package 184
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1261864-STM32MP151DAD1
Ultra Librarian 3D Model Ultra Librarian STM32MP151DAD1 CAD Model

Description

STM32MP151DAD1 - A Versatile Microprocessor from STMicroelectronics

The STM32MP151DAD1 is a powerful and flexible microprocessor that brings together the benefits of a microcontroller with the capabilities of a microprocessor, designed by the renowned semiconductor manufacturer, STMicroelectronics. This product is part of the STM32MP1 series, which is known for its high computing power and rich set of peripherals that make it suitable for a wide range of applications.

Key Features:

  • Dual-core Configuration: At the heart of the STM32MP151DAD1 is a dual-core configuration consisting of an Arm® Cortex®-A7 core running up to 800 MHz and a Cortex®-M4 core at 209 MHz. This unique design enables real-time processing as well as application processor tasks, ensuring a versatile platform for complex tasks.
  • Advanced Graphics Support: The processor includes a 3D GPU, which provides advanced graphics capabilities for applications that require rich user interfaces, such as industrial control panels and home automation systems.
  • Rich Connectivity: It comes with a comprehensive set of peripherals, including multiple I/O ports, USB, Ethernet, and camera interfaces, making it an ideal choice for connectivity-heavy applications.
  • Robust Security: Security features are paramount, and the STM32MP151DAD1 delivers with features like secure boot, cryptographic acceleration, and a dedicated hardware random number generator to protect against external threats.
  • Power Efficiency: Designed with power efficiency in mind, the microprocessor is suitable for applications that require energy-saving modes, such as IoT devices and portable electronics.

Applications:

The STM32MP151DAD1 is highly adaptable and can be used in a variety of applications including industrial control systems, consumer electronics, health care devices, and smart home technologies. Its ability to handle complex processing tasks while maintaining low power consumption makes it a go-to choice for designers and engineers looking to create sophisticated and efficient products.

Support and Resources:

STMicroelectronics provides extensive support for the STM32MP151DAD1, including development tools, software resources, and a strong community forum. Developers can take advantage of the STM32 ecosystem to accelerate their design process and bring their products to market faster.
