Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 800MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps (1)
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -20°C ~ 105°C (TJ)
Security Features ARM TZ

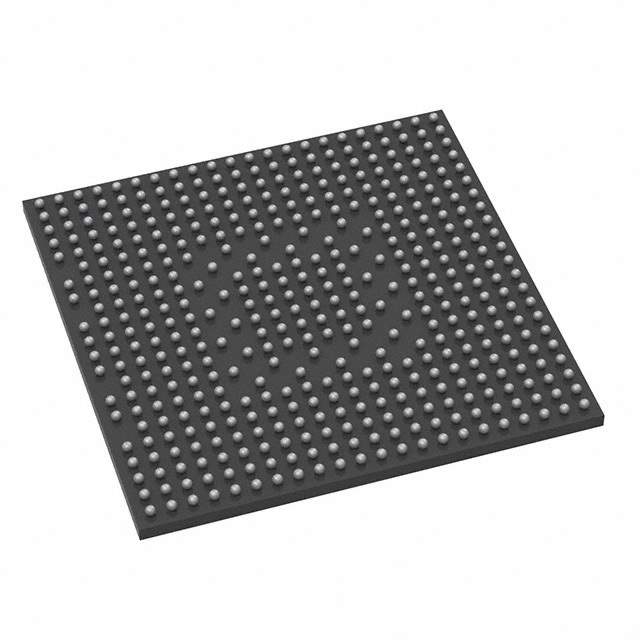

Package / Case 448-LFBGA
Supplier Device Package 448-LFBGA (18x18)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-STM32MP153DAA1
Standard Package 84
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1261826-STM32MP153DAA1
Ultra Librarian 3D Model Ultra Librarian STM32MP153DAA1 CAD Model

Description

The STM32MP153DAA1 is a highly capable microprocessor from STMicroelectronics, designed to offer a perfect blend of real-time and application processor capabilities. It is part of the STM32MP1 series, which is renowned for its dual-core architecture, combining a Cortex-A7 core for high-performance computing and a Cortex-M4 core for real-time tasks.

Key Features

  • Dual-core Configuration: The STM32MP153DAA1 features a dual-core design with an Arm® Cortex®-A7 core operating at up to 800 MHz and a Cortex-M4 core at 209 MHz, enabling efficient task management and application partitioning.
  • Advanced Graphics Support: With an integrated 3D GPU, the processor is well-suited for applications requiring rich graphics, such as human-machine interfaces (HMIs).
  • Flexible Memory Interface: It supports a range of external memories, including DDR3, DDR3L, LPDDR2, and LPDDR3, providing flexibility in system design.
  • Robust Connectivity: The microprocessor offers a comprehensive set of peripherals for connectivity, including Gigabit Ethernet, multiple USB 2.0 ports, and support for various other communication interfaces.
  • Enhanced Security Features: It comes with hardware security features such as a TrustZone® for ARMv7-M, cryptographic acceleration, secure boot, and secure firmware update capabilities.

Applications

The STM32MP153DAA1 is ideal for a wide range of applications, including:

  • Industrial control systems
  • Consumer electronics
  • Internet of Things (IoT) devices
  • Medical equipment
  • Home automation systems

Development Support

STMicroelectronics provides extensive development support for the STM32MP153DAA1 with software tools, development kits, and a strong community. Developers can leverage the STM32 ecosystem, including the STM32Cube software suite and a wide range of development boards, to accelerate the design and deployment of their applications.

With its powerful dual-core architecture, rich set of peripherals, and advanced security features, the STM32MP153DAA1 is an excellent choice for developers looking to create sophisticated and secure embedded systems.
