Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Array 1 Pair Common Cathode Schottky 120 V 10A Through Hole TO-220-3
Manufacturer STMicroelectronics
Package Tube
Part Status Obsolete
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package TO-220-3
Case / Package TO-220AB Narrow Leads
Family Name STPS20120
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 497-15148-5, -1138-STPS20120CTN, STPS20120CTN-ND, -497-15148-5
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 935605-STPS20120CTN
Ultra Librarian 3D Model Ultra Librarian STPS20120CTN CAD Model

Description

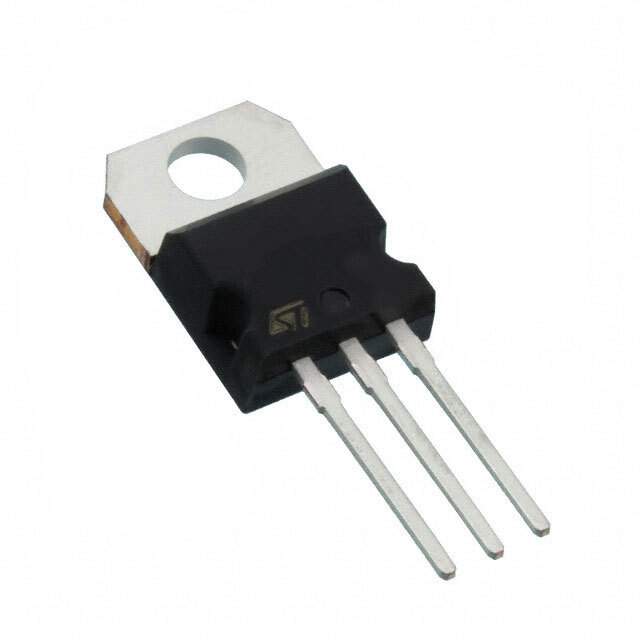

STPS20120CTN Power Schottky Rectifier

The STPS20120CTN is a robust and high-performance Power Schottky Rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This rectifier is engineered to meet the stringent requirements of high efficiency and reliability in power conversion applications. The device features a dual center tap Schottky rectifier configuration, which is ideal for switch mode power supplies and high-frequency DC to DC converters.

Key Features

  • High Junction Temperature Capability: The STPS20120CTN is capable of operating at junction temperatures up to 150°C, which ensures reliability even under high temperature conditions.
  • Low Forward Voltage Drop: With a low forward voltage drop, this rectifier provides better efficiency in the application, reducing thermal losses and improving overall performance.
  • High Surge Current Capability: This device can handle high surge currents, making it suitable for applications that experience frequent power surges or spikes.
  • Low Leakage Current: The low leakage current of the STPS20120CTN minimizes power loss when the diode is in the reverse-biased state, contributing to the energy efficiency of the system.

Applications

The STPS20120CTN is versatile and can be used in a variety of applications, including:

  • Power Management Solutions
  • Switch Mode Power Supplies (SMPS)
  • DC to DC Converters
  • Free-Wheeling Diodes in Motor Control Circuits
  • Power Factor Correction Circuits
  • Reverse Battery Protection

Package and Quality

Encapsulated in a TO-220AB narrow leads package, the STPS20120CTN ensures efficient heat dissipation and robust mechanical protection. This package is widely accepted in the industry and is compatible with standard mounting and assembly processes.

STMicroelectronics is committed to delivering high-quality products. The STPS20120CTN is manufactured to meet the highest industry standards of performance and reliability, ensuring that it meets the needs of the most demanding applications.

For designers and engineers looking for a reliable power rectifier solution, the STPS20120CTN offers an excellent balance of efficiency, thermal performance, and surge current capability, making it a top choice for power conversion and management tasks.
