Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Package Tape & Reel
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 600 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 60 V
Mounting SMD (SMT)
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAflat Notch
Operating Temperature - Junction 150°C
Base Product Number STPS2
Other Names 497-STPS2L60AFNTR,497-STPS2L60AFNCT,497-STPS2L60AFNDKR
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282064-STPS2L60AFN
Ultra Librarian 3D Model Ultra Librarian STPS2L60AFN CAD Model

Description

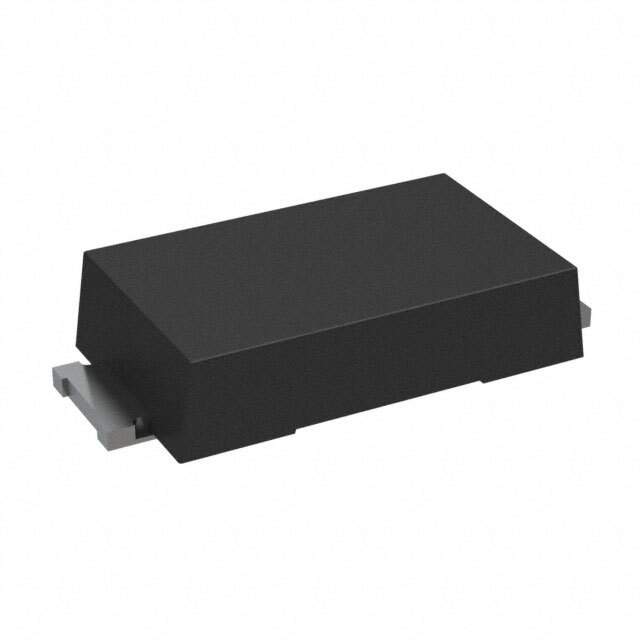

STPS2L60AFN Schottky Rectifier by STMicroelectronics

The STPS2L60AFN is a robust Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This component is engineered to provide high-efficiency power conversion in a wide range of electronic applications. The STPS2L60AFN is a testament to STMicroelectronics' commitment to delivering high-performance devices that meet the rigorous demands of modern electronic circuits.

Key Features

  • Low Forward Voltage Drop: The STPS2L60AFN boasts a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation.
  • High Junction Temperature: With a maximum operating junction temperature of 150°C, this Schottky rectifier can withstand high thermal environments, making it suitable for demanding applications.
  • Avalanche Capability: This device is capable of handling high surge currents, ensuring reliability and robustness during transient conditions.
  • Surface-Mount Package: The STPS2L60AFN comes in a surface-mount package, specifically the PowerFLAT™ 5x6, which allows for compact PCB design and efficient heat dissipation.

Applications

The STPS2L60AFN is ideal for a variety of applications where efficiency and thermal performance are critical. It is commonly used in:

  • Switching power supplies
  • Adapters and chargers
  • DC-DC converters
  • Free-wheeling diodes in motor control circuits
  • Power management systems

Technical Specifications

The STPS2L60AFN Schottky rectifier has the following technical specifications:

  • Average forward current: 2 A
  • Repetitive peak reverse voltage: 60 V
  • Non-repetitive peak forward surge current: 50 A
  • Forward voltage drop (typical): 0.55 V at 2 A
  • Operating junction temperature range: -40°C to 150°C

With its combination of low power loss, high temperature resilience, and compact footprint, the STPS2L60AFN is an excellent choice for designers looking to optimize their power management solutions. STMicroelectronics' dedication to quality and performance is clearly reflected in this efficient and reliable Schottky rectifier.
