Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 120V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 880mV @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 200μA @ 120V
Operating Temperature - Junction 150°C (Max)
Mounting Through Hole

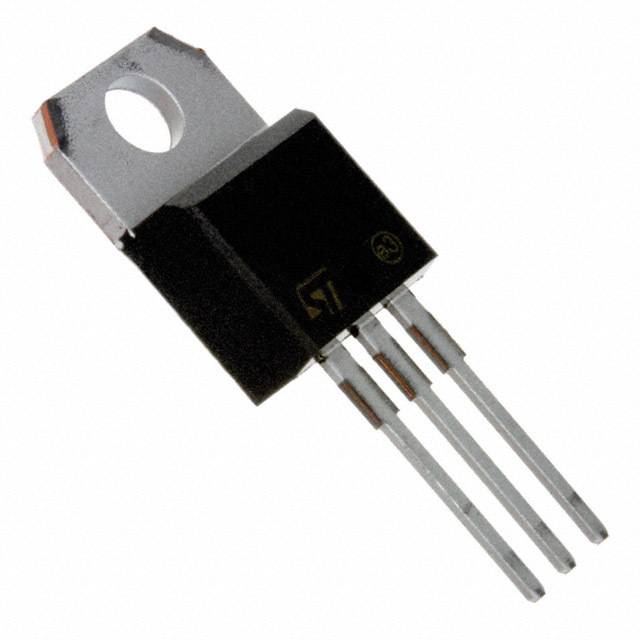

Case / Package TO-220AB
Win Source Part Number 212378-STPS30L120CT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STPS30L120CT CAD Model

Description

STPS30L120CT Dual Schottky Rectifier

The STPS30L120CT is a high-performance dual Schottky rectifier designed by STMicroelectronics, crafted to meet the demanding requirements of high-efficiency power supply applications. This component stands out for its low forward voltage drop and high surge current capability, making it an ideal choice for applications requiring superior power handling and energy efficiency.

Key Features

  • High Junction Temperature: Capable of operating at junction temperatures as high as 150°C, the STPS30L120CT ensures reliability and stability in high-temperature environments.
  • Low Forward Voltage Drop (VF): With a VF of typically 0.69V at 15A, this rectifier minimizes power loss and improves efficiency, which is critical in power conversion applications.
  • High Surge Current Capability: Designed to withstand high surge currents, this device can manage the demanding conditions of power supply circuitry.

Applications

The STPS30L120CT is versatile and can be used in a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction circuits (PFC)
  • Free-wheeling diodes in converters and motor control circuits
  • Automotive applications

Electrical Characteristics

With a maximum average forward current of 30A (per diode) and a non-repetitive peak forward surge current of 250A, the STPS30L120CT is built to handle significant power and stress. Its dual center-tap configuration allows for flexibility in circuit designs, providing engineers with a component that can be used in a wide range of power applications.

Package and Quality

Encased in a TO-220AB package, the STPS30L120CT is designed for easy mounting on printed circuit boards. STMicroelectronics ensures that this product meets rigorous quality standards, providing a reliable solution for power rectification needs.

For detailed specifications and application notes, designers and engineers are encouraged to consult the official datasheet provided by STMicroelectronics. This will ensure the STPS30L120CT is employed effectively to meet the specific requirements of their applications.
