Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 570mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1.8mA @ 60V
Operating Temperature - Junction 150°C (Max)
Mounting Through Hole
Case / Package MAX247
Win Source Part Number 054003-STPS80L60CY
Popularity Medium
Supply and Demand Status Balance
Quantity per package 30
Ultra Librarian 3D Model Ultra Librarian STPS80L60CY CAD Model

Description

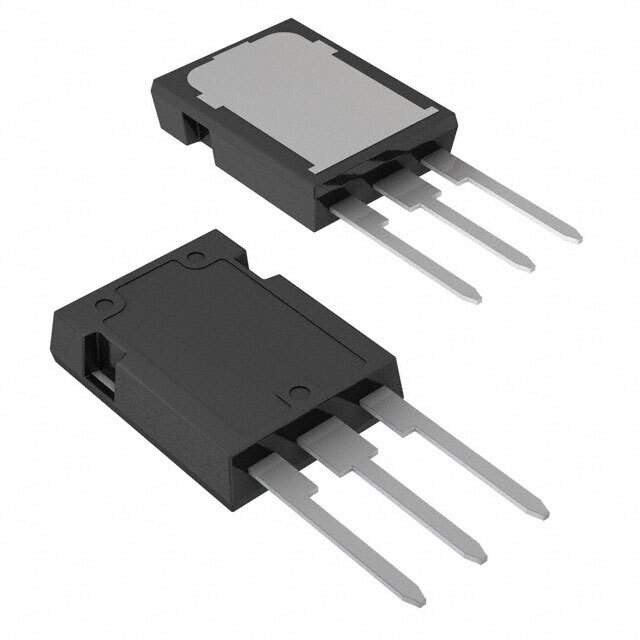

STPS80L60CY - Schottky Rectifier

The STPS80L60CY is a robust and efficient Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This power Schottky rectifier is specifically engineered to meet a wide range of applications requiring low forward voltage drop and high surge current capability.

Key Features

  • High Junction Temperature: This device can operate at a junction temperature of up to 175°C, making it suitable for high-temperature applications.
  • Low Forward Voltage Drop: The rectifier provides a low forward voltage drop, which enhances power efficiency and reduces thermal issues during operation.
  • High Surge Current Capability: It is capable of handling high surge currents, ensuring reliability and robustness in demanding situations.
  • Dual Center Tap Configuration: The STPS80L60CY comes in a dual center tap configuration housed in a TO-247 package, which is ideal for high current applications.
  • Avalanche Rated: This device is also avalanche rated, providing additional protection against unexpected voltage transients.

Applications

The STPS80L60CY is suitable for an array of applications, including:

  • Switching power supplies
  • Converters
  • Free-wheeling diodes
  • Reverse battery protection
  • DC/DC converters
  • Automotive applications

Technical Specifications

The device offers a maximum average forward current of 80A, with a peak repetitive reverse voltage (VRRM) of 60V. Its low forward voltage drop ensures that the rectifier operates efficiently, while the high surge current capability adds to the device's reliability under extreme conditions.

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STPS80L60CY is manufactured to meet the highest industry standards for performance and reliability, ensuring that it performs consistently over its lifespan in a variety of applications and environments.
