Products specifications

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 44 Weeks
Features Diode Schottky 100 V 8A Surface Mount PowerFlat™ (3.3x3.3)
Manufacturer STMicroelectronics
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package 8-PowerTDFN

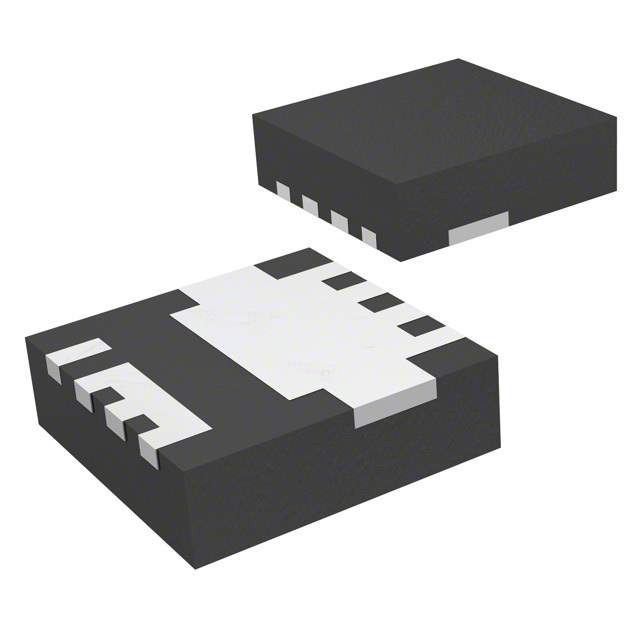

Case / Package PowerFlat™ (3.3x3.3)
Family Name STPS8
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number STPS8H100DEETR, 497-13331-6, 497-13331-1, 497-13331-2
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898390-STPS8H100DEE-TR
Ultra Librarian 3D Model Ultra Librarian STPS8H100DEE-TR CAD Model

Description

STPS8H100DEE-TR from STMicroelectronics is a single rectifier diode used in power conversion, reverse-polarity protection, output rectification, and general low-loss power path designs. Components in this category are commonly selected for switch-mode power supplies, industrial control boards, adapters, telecom equipment, and automotive-adjacent power circuits where efficiency, thermal behavior, and dependable rectification performance matter. For engineers and sourcing teams, this part fits applications that need a recognized STMicroelectronics device in the Diodes, Rectifiers - Single category, especially when design stability and supply-chain traceability are important. The current lifecycle status for STPS8H100DEE-TR is information not available from the provided input, so teams should confirm whether the device is active or subject to supply constraints before locking it into new designs. RoHS compliance status is also information not available here; engineers should verify the latest environmental compliance declarations, datasheet details, and manufacturer documentation before procurement or release to production.
