Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Package Tape & Reel (TR),Cut Tape (CT)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Operating Temperature - Junction 175°C (Max)
Base Product Number STTH1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 497-14740-2,497-14740-1,STTH1R04QRL-ND
Standard Package 6,000
Win Source Part Number 991768-STTH1R04QRL
Ultra Librarian 3D Model Ultra Librarian STTH1R04QRL CAD Model

Description

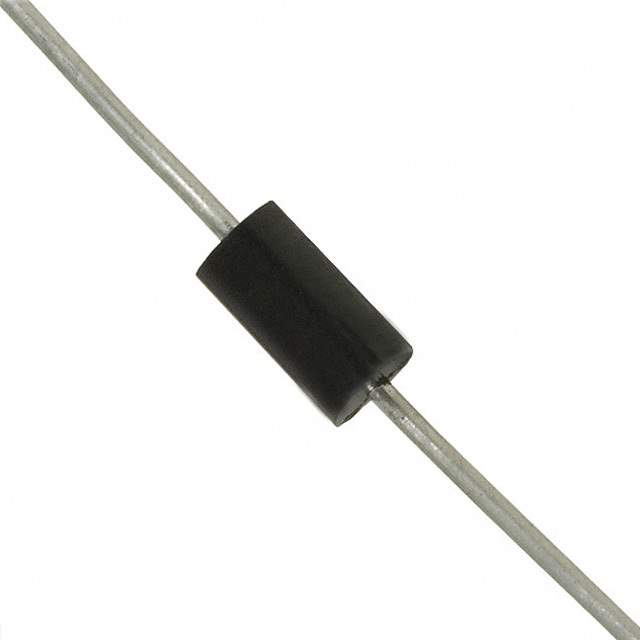

STMicroelectronics STTH1R04QRL Ultrafast Recovery Diode

The STTH1R04QRL from STMicroelectronics is a cutting-edge ultrafast recovery diode designed for high-efficiency power supply manufacturing. This component is engineered to meet the stringent demands of modern compact electronic applications, offering both high performance and reliability.

With a reverse voltage of 400 V and an average forward current of 1 A, the STTH1R04QRL is capable of handling significant power and is suitable for a variety of switching applications. Its ultrafast recovery time is particularly beneficial for high-frequency operations, making it a perfect fit for switch-mode power supplies, converters, and freewheeling diodes in various electronic devices.

The diode's low forward voltage drop contributes to its high-efficiency profile, ensuring minimal energy loss during conduction. This characteristic is essential for applications where power conservation is critical. Additionally, the STTH1R04QRL boasts a low reverse recovery time, which minimizes switching losses and helps to improve the overall efficiency of the system in which it is used.

The robustness of the STTH1R04QRL is further highlighted by its high surge current capability, which protects the diode against unexpected current spikes. This feature is crucial for maintaining the longevity and reliability of both the diode and the electronic system.

Packaged in a SMB (DO-214AA) form factor, the STTH1R04QRL is designed for surface-mount technology (SMT), which allows for a more compact and streamlined design of electronic circuits. The package is also RoHS compliant and halogen-free, reflecting STMicroelectronics' commitment to environmental sustainability.

In summary, the STTH1R04QRL ultrafast recovery diode from STMicroelectronics is a high-performance component that combines speed, efficiency, and reliability. It is an excellent choice for engineers and designers looking to enhance the performance of their power conversion applications while reducing energy consumption and ensuring long-term reliability.
