Products specifications

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 44 Weeks

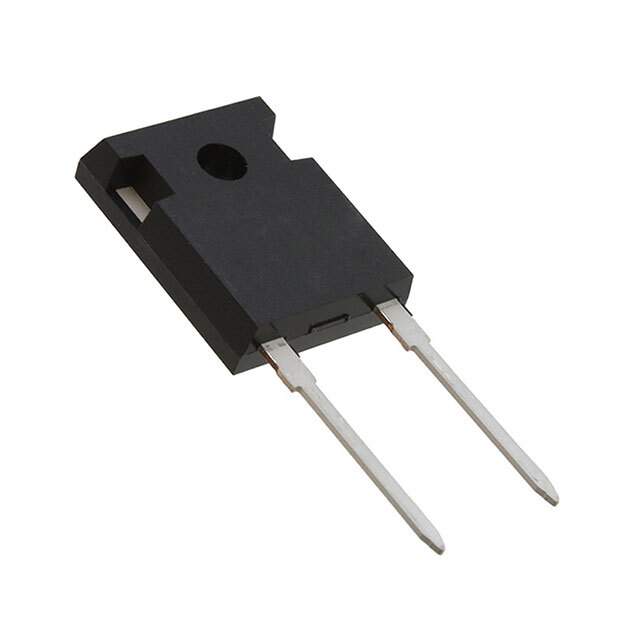

Features Diode Standard 600 V 30A Through Hole TO-247-2
Manufacturer STMicroelectronics
Package Tube
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package TO-247-2
Case / Package TO-247-2
Family Name STTH30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 30
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898469-STTH30ACS06W
Ultra Librarian 3D Model Ultra Librarian STTH30ACS06W CAD Model

Description

The STTH30ACS06W, from STMicroelectronics, is an ultrafast recovery diode designed to meet the rigorous demands of high-efficiency power electronics systems. This component is particularly well-suited for applications requiring high voltage capability, low forward voltage drop, and ultrafast switching performance.

Key Features

  • Voltage Ratings: With a repetitive peak reverse voltage (VRRM) of 600V, the STTH30ACS06W is capable of handling high voltage requirements, making it suitable for a wide range of power applications.
  • Current Capacity: This diode has an average forward current (IF(AV)) of 30A, ensuring it can support significant current loads without overheating or failure.
  • Ultrafast Recovery Time: The device features an exceptionally fast recovery time, which minimizes power losses during the switching process and increases the overall efficiency of the power conversion system.
  • Low Forward Voltage Drop: The low forward voltage drop (VF) helps to reduce power dissipation and improve thermal performance, thereby increasing the reliability of the system in which it is used.
  • High Surge Capacity: Its high surge current capability is essential for handling overcurrent conditions without damage, ensuring robust performance in challenging environments.

Applications

The STTH30ACS06W is ideal for a variety of applications where efficiency and reliability are paramount. These include:

  • Switch-mode power supplies (SMPS)
  • Uninterruptible power supplies (UPS)
  • Power factor correction circuits (PFC)
  • Freewheeling diodes in motor control circuits
  • Snubber diodes

Package and Quality

The diode is packaged in an insulated TO-247 package, which provides excellent thermal resistance and mechanical robustness. The package is designed for easy mounting on a heatsink, critical for maintaining thermal efficiency and long-term reliability.

Conclusion

The STTH30ACS06W ultrafast recovery diode from STMicroelectronics is a high-performance solution that offers power electronics designers the speed, efficiency, and reliability needed for today's high-voltage applications. Its robust design and advanced features ensure optimal performance in a wide range of industrial and commercial devices.
