Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 44 Weeks
Features Diode Standard 200 V 3A Surface Mount SOD128Flat
Manufacturer STMicroelectronics
Series Automotive, AEC-Q101, ECOPACK®2
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package SOD-128
Case / Package SOD128Flat
Family Name STTH3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 497-15974-6, 497-15974-2, 497-15974-1
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898476-STTH3R02AFY
Ultra Librarian 3D Model Ultra Librarian STTH3R02AFY CAD Model

Description

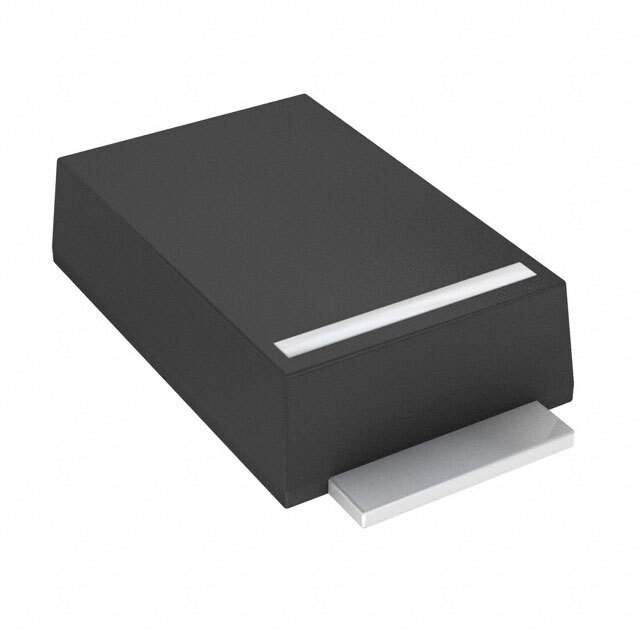

STTH3R02AFY Ultrafast Recovery Diode

The STTH3R02AFY is a high-performance ultrafast recovery diode designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This diode is specifically engineered to meet the demanding requirements of fast-switching converters and high-frequency circuits.

Key Features

  • Low Forward Voltage Drop: The STTH3R02AFY boasts a very low forward voltage drop, which significantly reduces power loss and improves efficiency in applications. This feature is particularly beneficial in high-frequency power switching where voltage drops can lead to significant losses.
  • Ultrafast Reverse Recovery Time: With an extremely fast reverse recovery time, this diode is capable of switching from conducting to blocking state very quickly, making it ideal for applications that require high-speed operation and minimal switching losses.
  • High Surge Current Capability: The device is designed to withstand high surge currents, ensuring robust performance and reliability under stressful conditions such as load dump or short-circuit events.
  • High Junction Temperature: The STTH3R02AFY can operate at high junction temperatures, offering a wider margin for thermal design and making it suitable for high-temperature environments.

Applications

The ultrafast recovery diode is well-suited for a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction (PFC) circuits
  • Snubber circuits
  • Freewheeling diodes in converters and motor control circuits
  • Automotive applications requiring high reliability

Package Details

The STTH3R02AFY comes in a fully insulated package that is designed to be easy to mount and handle. The package ensures electrical insulation of the device up to 2000V, which is a critical feature for safety in high-voltage applications. Additionally, the package is RoHS compliant and conforms to STMicroelectronics' commitment to environmental sustainability.

Overall, the STTH3R02AFY from STMicroelectronics represents a blend of performance and reliability, making it an excellent choice for designers looking to optimize their power management solutions.
