Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V (1kV)
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 2V @ 60A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 115ns
Current - Reverse Leakage @ Vr 20μA @ 1000V
Mounting Through Hole
Case / Package DO-247
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 054036-STTH6010W
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STTH6010W CAD Model

Description

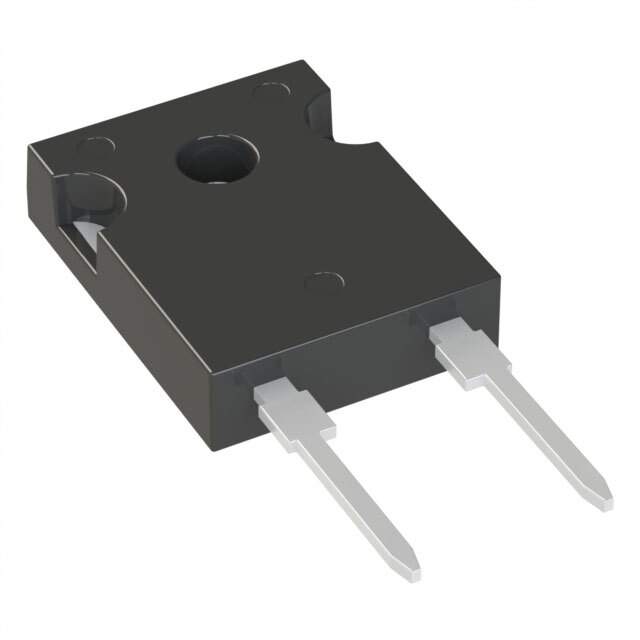

STTH6010W - Ultrafast High Voltage Rectifier

The STTH6010W is a state-of-the-art ultrafast high voltage rectifier designed and manufactured by STMicroelectronics. This robust diode is specifically engineered to meet the stringent requirements of high efficiency power supplies, enabling them to handle high voltage and current with ease while providing exceptional performance.

With its breakthrough switching speed and reduced reverse recovery time, the STTH6010W is an ideal choice for high frequency power switching applications. This rectifier is capable of withstanding a repetitive peak reverse voltage of up to 1000V, making it highly suitable for high voltage circuits. Additionally, its average forward current is rated at 60A, ensuring it can handle significant power loads without compromising performance or reliability.

The STTH6010W comes in an insulated TO-247 package that not only provides excellent thermal performance but also ensures electrical isolation from the heatsink. This feature simplifies the design and enhances the safety of the application it is used in. The package is also designed for easy installation, making it a user-friendly option for both professionals and hobbyists.

Key Features:

  • Ultrafast switching capability
  • Low reverse recovery time
  • High repetitive peak reverse voltage (VRRM = 1000V)
  • Average forward current (IF(AV) = 60A)
  • Insulated TO-247 package for easy mounting
  • High thermal and electrical performance

Applications for the STTH6010W are diverse and include switch-mode power supplies (SMPS), high efficiency converters, freewheeling diodes in inverters, and power factor correction circuits. Its ultrafast recovery time makes it particularly beneficial in reducing losses in high frequency switching, thus improving the overall efficiency of the system.

STMicroelectronics' commitment to quality and performance is evident in the design and production of the STTH6010W. This rectifier is a testament to their dedication to providing components that push the boundaries of power management technology, making it a reliable and cutting-edge solution for modern electronic applications.
