Products specifications

Category Integrated Circuits (ICs) - Interface - Controllers
Mfr STMicroelectronics
Package Tape & Reel
Product Status Active
Programmable Not Verified
Protocol USB
Function Controller
Interface I2C
Standards USB 2.0, USB 3.0
Voltage - Supply 4.1V ~ 22V
Current - Supply 210µA
Temperature Range - Operating -40°C ~ 105°C (TA)

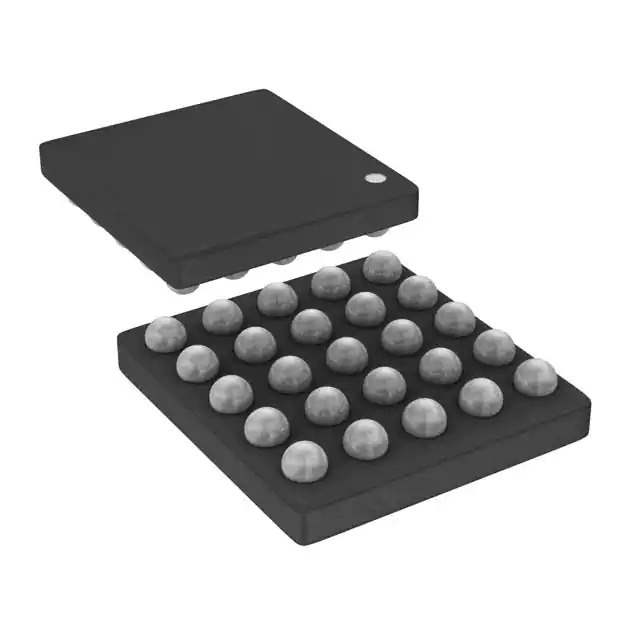

Package / Case 25-UFBGA, WLCSP
Supplier Device Package 25-WLCSP (2.59x2.59)
Base Product Number STUSB4500
Standard Package 2,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 852124-STUSB4500BJR
Ultra Librarian 3D Model Ultra Librarian STUSB4500BJR CAD Model

Description

The STUSB4500BJR is a cutting-edge USB Power Delivery (PD) controller designed by STMicroelectronics, tailored for sink devices that require USB Type-C connectivity. This autonomous PD controller is specifically engineered for applications that necessitate the negotiation of a power contract with a USB PD source without the need for any system software control, making it an ideal solution for a variety of devices such as smartphones, tablets, and other portable electronics.

Key Features

  • USB Type-C Rev 1.2 Compliant: Ensures compatibility with the latest USB Type-C specifications, offering a reliable connection for data and power.
  • USB Power Delivery Rev 3.0 Compliant: Supports advanced power delivery protocols for efficient power management and optimized charging capabilities.
  • Autonomous Operation: Capable of functioning without software intervention, simplifying the integration process into existing designs.
  • Flexible Power Configuration: Programmable power delivery profiles enable the device to negotiate up to 3 different PDOs (Power Delivery Objects) for optimal power utilization.
  • BIST & Cable Plug Tests: Built-in BIST (Built-In Self-Test) and cable plug tests ensure reliability and durability of the USB connection.
  • Short-to-VBUS Protections: Features protections against shorts to VBUS, enhancing the safety of the device during operation.
  • Temperature Range: Operates within an industrial temperature range, making it suitable for a wide range of environments.
  • Package: Available in a compact QFN-24 package, which is ideal for space-constrained applications.

Applications

The STUSB4500BJR is versatile in its applications, catering to sectors that require robust power delivery via USB Type-C. It is commonly used in:

  • Power banks
  • Wall chargers
  • Car chargers
  • Battery chargers
  • Embedded systems
  • Portable consumer devices

Overall, the STUSB4500BJR from STMicroelectronics is a powerful solution for modern USB PD requirements, offering both reliability and ease of use for manufacturers and end-users alike.
