Products specifications

Category Integrated Circuits (ICs)>Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Mfr STMicroelectronics
Package Tray
PLL No
Input LVDS, LVPECL
Output Clock
Number of Circuits 1
Frequency - Max 6GHz
Divider/Multiplier Yes/Yes
Voltage - Supply 2.5V ~ 5.4V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)

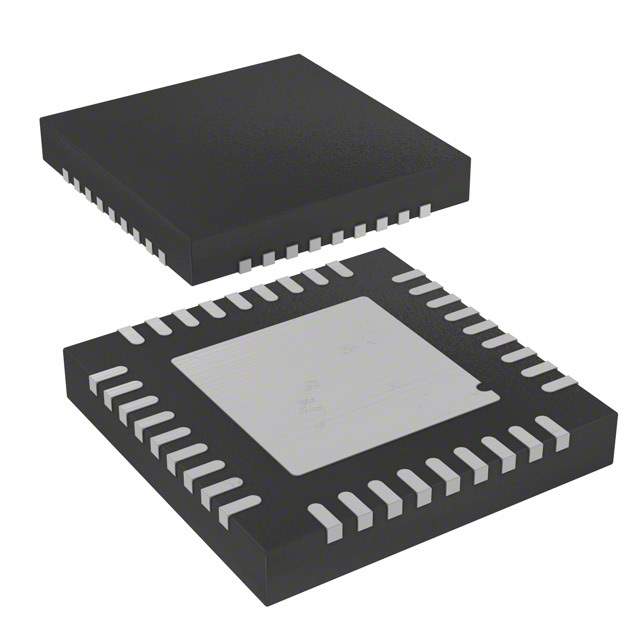

Package / Case 36-VFQFN Exposed Pad
Supplier Device Package 36-VFQFPN (6x6)
Base Product Number STW81200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names STW81200T-ND,497-18618
Standard Package 490
Win Source Part Number 1219086-STW81200T
Ultra Librarian 3D Model Ultra Librarian STW81200T CAD Model

Description

The STW81200T from STMicroelectronics is a versatile and high-performance multi-band RF synthesizer capable of generating a wide range of frequencies, designed to meet the needs of complex wireless communication systems. This component is particularly suitable for applications in the fields of telecommunications, aerospace, defense, and instrumentation, where precise and stable signal generation is crucial.

With an integrated Voltage-Controlled Oscillator (VCO) and a dual fractional/integer-N phase-locked loop (PLL), the STW81200T offers a high level of integration, reducing the need for external components and simplifying the design process for engineers. The device supports a broad frequency range from 46.875 MHz to 6 GHz, providing the flexibility to use it in various frequency bands.

The STW81200T also boasts a low phase noise performance, which is critical in maintaining signal integrity and achieving high-quality data transmission. Its fast-locking feature ensures that the synthesizer can quickly stabilize after frequency changes, an essential attribute for systems requiring rapid frequency hopping.

In terms of programmability, the STW81200T offers a three-wire SPI interface, allowing for easy control and configuration of the device. This feature enables the synthesizer to be dynamically programmed for different frequency bands and settings, making it highly adaptable to multiple scenarios without requiring hardware changes.

The STW81200T is available in a compact QFN 32 (5x5 mm) package, which is ideal for space-constrained applications. Additionally, it operates over an extended temperature range, ensuring reliable performance even under harsh environmental conditions.

Overall, the STW81200T synthesizer is a testament to STMicroelectronics' commitment to providing advanced solutions for the rapidly evolving wireless communication market. Its integration, performance, and versatility make it an excellent choice for developers looking to create state-of-the-art RF systems.
