Products specifications

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr STMicroelectronics
Series -
Package Tube
Product Status Obsolete
Amplifier Type CMOS
Number of Circuits 2
Output Type -
Slew Rate 5.5V/µs
Gain Bandwidth Product 3.5 MHz
Current - Input Bias 1 pA
Voltage - Input Offset 1.1 mV
Current - Supply 1mA (x2 Channels)
Current - Output / Channel 45 mA
Voltage - Supply Span (Min) 3 V
Voltage - Supply Span (Max) 16 V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number TS272
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1380137-TS272ID
Ultra Librarian 3D Model Ultra Librarian TS272ID CAD Model

Description

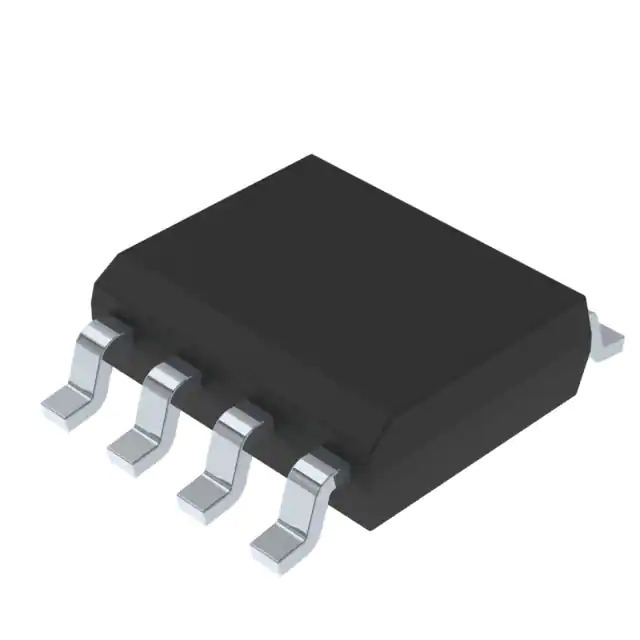

The TS272ID from STMicroelectronics is a high-performance CMOS operational amplifier that offers a perfect combination of low power consumption and high precision. This operational amplifier is designed to operate with a single or dual power supply, making it a versatile choice for a wide range of electronic applications.

Featuring a low input offset voltage and a high gain bandwidth product, the TS272ID is an excellent choice for applications requiring high accuracy and dynamic response. The device operates over a wide range of supply voltages, from 3V to 16V, and it is characterized for operation from -40°C to +125°C, ensuring reliability across various environmental conditions.

The TS272ID comes in a compact SO-8 package, which is ideal for space-constrained applications. With its low input bias current, the operational amplifier is particularly well-suited for high-impedance sensor interfaces and battery-powered applications. The low power consumption of the TS272ID also makes it an excellent choice for portable devices, where power efficiency is critical.

The device's rail-to-rail output stage allows for a wide dynamic range, which is especially useful in single-supply operations. This feature ensures that the output can swing close to the supply rails, maximizing the signal amplitude without clipping. Additionally, the TS272ID has excellent stability with capacitive loads, which is often a challenge for many operational amplifiers.

Key features of the TS272ID include a typical input offset voltage of 0.9mV, a low supply current of just 150µA per amplifier at 5V, and a high gain bandwidth product of 1MHz. This makes the TS272ID an ideal choice for applications such as active filtering, medical instrumentation, and precision current sensing.

In summary, the TS272ID operational amplifier from STMicroelectronics offers a remarkable balance of power efficiency and precision, making it an excellent choice for designers looking for a reliable and versatile component for their electronic designs.
