Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Class G
Output Type Headphones, 2-Channel (Stereo)
Supply Voltage - Operating 2.3 V to 4.8 V
Features Depop, Differential Inputs, I2C, Short-Circuit and Thermal Protection, Standby, Volume Control
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)

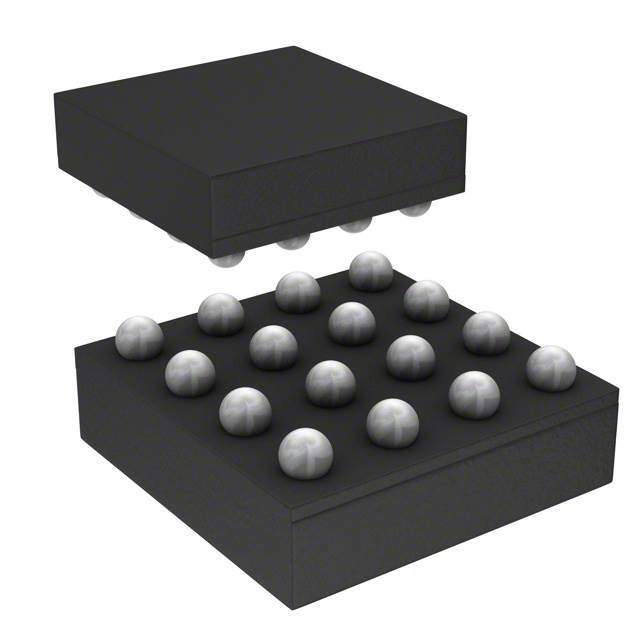

Case / Package 16-Flipchip (1.65x1.65)
Dimension 16-WFBGA, FCBGA
Win Source Part Number 1114382-TS4621EIJT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TS4621EIJT CAD Model

Description

Product Overview: TS4621EIJT by STMicroelectronics

The TS4621EIJT is a high-fidelity audio amplifier designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This audio amplifier is specifically engineered to deliver outstanding sound quality with low power consumption, making it an ideal choice for portable audio applications.

Key Features

  • High Audio Performance: The TS4621EIJT offers an exceptional audio experience with a Signal-to-Noise Ratio (SNR) of 100 dB, ensuring crystal-clear sound reproduction.
  • Low Power Consumption: Designed with power efficiency in mind, this amplifier consumes only 1.6 mA in playback mode, which extends the battery life of portable devices.
  • DirectDrive® Technology: Incorporating DirectDrive technology, the TS4621EIJT can drive headphones without the need for DC-blocking capacitors, thus reducing the overall component count and saving on PCB space.
  • Adjustable Gain Settings: With its built-in 64-step digital volume control, the amplifier allows for precise volume adjustments to suit user preferences or to compensate for varying headphone impedances.
  • Pop & Click Suppression: The device includes features to minimize pop and click noises during power-up and power-down sequences, enhancing the user experience.

Applications

The TS4621EIJT is versatile and can be used in a wide range of applications where audio quality is paramount. It is particularly well-suited for:

  • Smartphones and Tablets
  • Portable Media Players
  • Laptop and Desktop Computers
  • Portable Gaming Systems
  • GPS Units

Technical Specifications

The device comes in a compact 1.45 x 1.45 mm flip-chip package that is both space-saving and offers excellent thermal performance. It operates over a wide temperature range from -40°C to 85°C, ensuring reliability across various environments. The TS4621EIJT requires a supply voltage between 2.5 V and 5.5 V, making it compatible with most standard battery technologies used in portable electronics.

Conclusion

STMicroelectronics' TS4621EIJT audio amplifier is a top-tier solution for any application requiring high-quality audio playback without compromising on power efficiency. Its integration of advanced features, such as DirectDrive technology and pop & click suppression, ensures a superior audio experience for end-users.
