Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Gate Trigger (Igt) (Max) 40mA
Voltage - On State (Vtm) (Max) 1.6V
Current - On State (It (AV)) (Max) 16A
Current - On State (It (RMS)) (Max) 25A
Current - Hold (Ih) (Max) 50mA
Current - Off State (Max) 5μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 300A, 314A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 054369-TYN825RG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TYN825RG CAD Model

Description

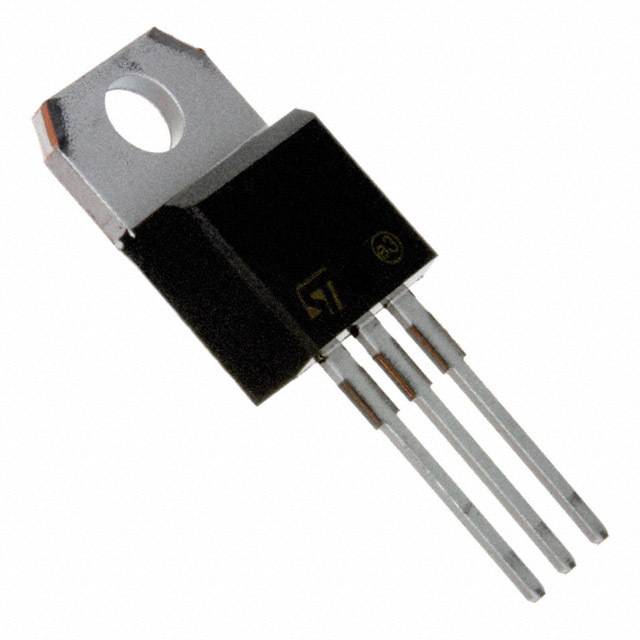

STMicroelectronics TYN825RG Thyristor

The TYN825RG is a robust and reliable silicon-controlled rectifier (SCR) manufactured by STMicroelectronics, a global semiconductor leader. This thyristor is designed to provide optimal performance in a wide range of applications that require phase control operations in converters, voltage regulation systems, and motor control circuits.

Key Features

  • High Surge Capability: The TYN825RG is capable of handling surge currents, making it suitable for applications that experience occasional overloads.
  • On-State RMS Current (I<sub>T(RMS)): This SCR can sustain an RMS current of up to 25A, ensuring reliable operation in high-power settings.
  • Repetitive Peak Off-State Voltage (V<sub>DRM): With a repetitive peak off-state voltage of 800V, the TYN825RG can be used in circuits with high voltage requirements.
  • Gate Trigger Current (I<sub>GT): A low gate trigger current makes the device easy to control, requiring minimal power to switch the SCR from off to on state.
  • Operating Junction Temperature Range: The device can operate within a temperature range of -40°C to 125°C, accommodating a variety of environmental conditions.

Applications

  • Motor Control Circuits
  • Industrial Power Tools
  • Lighting & Heating Control
  • Battery Chargers
  • Power Supplies
  • Home Appliances

Package and Mounting

The TYN825RG comes in a TO-220AB package, which is widely used for medium power devices. This package is designed for through-hole mounting, which simplifies the assembly process and provides strong mechanical anchoring to the PCB.

Quality and Reliability

As with all STMicroelectronics products, the TYN825RG meets stringent quality and reliability standards. The device is RoHS compliant and is manufactured using processes that ensure consistent performance and longevity.

Overall, the TYN825RG is a versatile SCR that offers a combination of high performance, reliability, and ease of use, making it an excellent choice for designers and engineers looking to implement efficient power control in their electronic systems.
