Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tray
Status Obsolete(EOL)
Core Processor 8032
Part Core Size 8-Bit
Speed(Frequency) 40MHz
Number of I/O 37
Program Memory Size 160KB (160K x 8)
Program Memory Type FLASH
Data RAM Size 8K x 8
Supply Voltage - Operating 4.5 V to 5.5 V
Data Converters A/D 4x8b
Temperature Range - Operating -40°C to 85°C (TA)
Dimension 52-TQFP
Win Source Part Number 106153-UPSD3233B-40T6
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name UPSD3233
Introduction Date March 23, 1998
ECCN 3A991.a.2
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UPSD3233B-40T6 CAD Model

Description

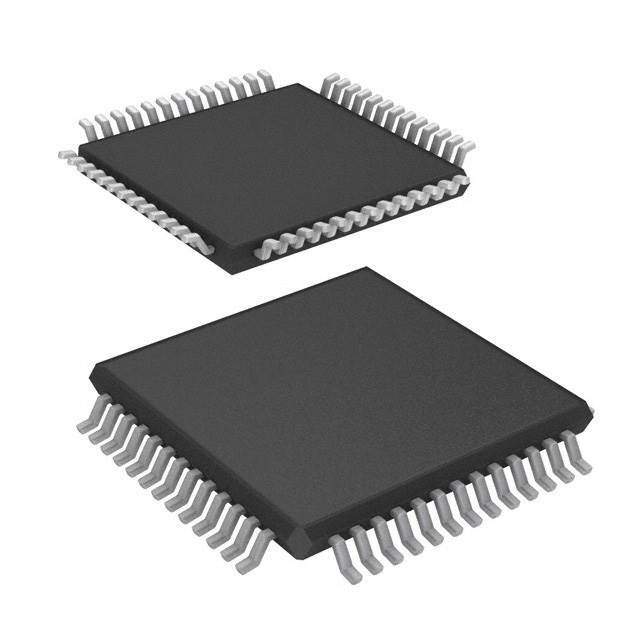

STMicroelectronics UPSD3233B-40T6 Microcontroller

The UPSD3233B-40T6 is a highly integrated and feature-rich microcontroller from STMicroelectronics, designed to cater to a wide range of embedded applications. This microcontroller is part of the uPSD3200 series, which is known for its dual-bank Flash architecture and comprehensive peripheral set, providing developers with a flexible and powerful platform for product development.

Key Features

  • High-Performance Core: At the heart of the UPSD3233B-40T6 is an 8-bit 8051-compatible microcontroller core that operates at up to 40MHz, delivering the processing power required for demanding applications.
  • Dual-Bank Flash Memory: The device comes equipped with 288KB of Flash memory, organized into two independent banks. This feature allows for in-application programming and firmware updates without interrupting the execution of your application, enhancing reliability and reducing downtime.
  • SRAM: It includes 16KB of internal SRAM, providing ample space for data storage and manipulation.
  • Advanced Peripherals: A variety of built-in peripherals are available, including multiple 16-bit timers, a PWM unit, and a serial interface, which simplifies design and reduces the need for external components.
  • Flexible I/O: The UPSD3233B-40T6 offers a rich set of 52 GPIO (General-Purpose Input/Output) pins, which are highly configurable to meet the specific needs of your application.
  • USB Functionality: With integrated USB 1.1 functionality, this microcontroller can easily connect to computers and other USB-enabled devices, providing a versatile interface for communication and control.

Applications

The UPSD3233B-40T6 is suited for a broad spectrum of applications, including but not limited to:

  • Industrial control systems
  • Consumer electronics
  • Automotive systems
  • Communication devices
  • Home automation

STMicroelectronics' commitment to quality and innovation is evident in the UPSD3233B-40T6 microcontroller, making it an ideal choice for designers looking to create sophisticated and reliable embedded systems.
