The VN820B5-E is a cutting-edge high-side driver manufactured by STMicroelectronics, designed to deliver robust and efficient control for automotive and industrial applications. This advanced chip is part of the VIPower M0-5 family, known for its smart electronic switches that integrate vertical current flow power MOSFET technology with analog and digital circuits on the same chip.

Key Features

• High-Side Switch: The VN820B5-E operates as a high-side switch, allowing it to drive loads with positive supply voltage. This type of configuration is beneficial for protecting the circuits from ground potential shifts and noise.
• Current Limitation: The device includes a current limitation feature that protects it against overload and short-circuit conditions, ensuring the longevity and reliability of the system.
• Thermal Shutdown: An in-built thermal shutdown function protects the device from overheating, which is crucial in maintaining performance and safety during high-power operations.
• Integrated Diagnostics: It also provides diagnostic feedback through a status pin, which can be used to monitor the health and functioning of the driver.
• Low Standby Current: The VN820B5-E is designed for energy efficiency, featuring a low standby current that minimizes power consumption when the driver is not actively switching.

Applications

The VN820B5-E is versatile and can be used in a variety of applications. It is particularly suited for automotive environments, where it can be used to control various loads such as lamps, motors, and other actuators. Additionally, its robust design makes it suitable for industrial applications requiring reliable high-side switching.

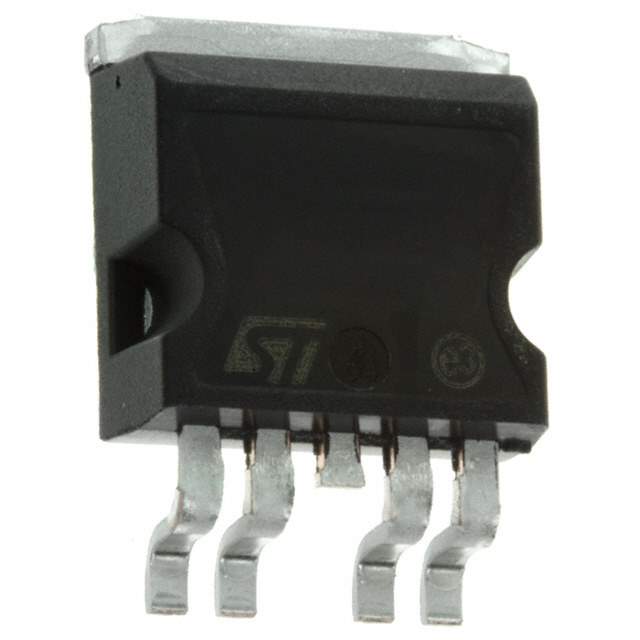

Package and Quality

This device is offered in a compact and robust package, ensuring that it can withstand the harsh conditions typically found in automotive and industrial settings. STMicroelectronics is committed to high quality and reliability, and the VN820B5-E is no exception, meeting stringent industry standards for performance and durability.
