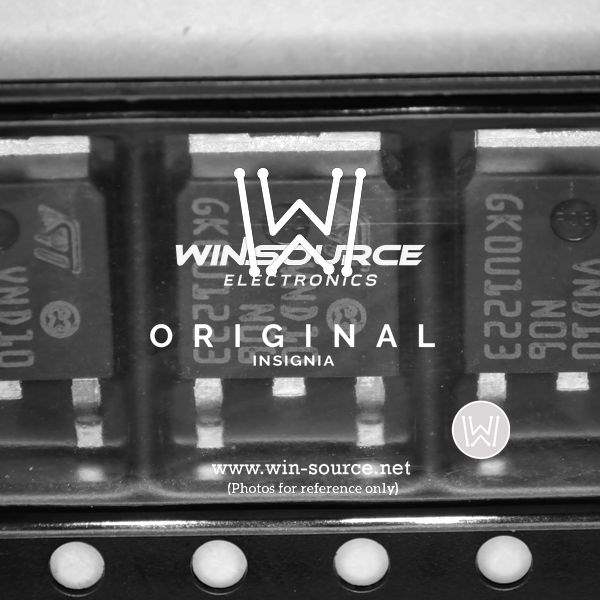

The VND10N06TR-E from STMicroelectronics is a robust and efficient power MOSFET designed for high-performance switching applications. This device is part of the OMNIFET II family, which is renowned for its high ruggedness and reliability. The VND10N06TR-E is tailored to meet the demanding requirements of automotive and industrial environments, providing an ideal solution for a wide range of applications.

Key Features

• Type: N-Channel
• Drain-to-Source Breakdown Voltage (V<sub>DSS): 60V
• Continuous Drain Current (I<sub>D): 10A
• R<sub>DS(on): Low on-state resistance
• Package: TO-252 (DPAK)

Applications

The VND10N06TR-E is suitable for a diverse array of applications, including but not limited to:

• Automotive applications
• DC motor control
• Power management systems
• Load switching
• Solenoid and relay drivers

Protection Features

STMicroelectronics has integrated several protection features into the VND10N06TR-E to ensure long-term reliability and safety in operation:

• Overvoltage clamp
• Thermal shutdown
• ESD protection

Advantages

The VND10N06TR-E MOSFET offers numerous advantages for designers and engineers:

• High Efficiency: Its low on-state resistance minimizes conduction losses, making the VND10N06TR-E an energy-efficient choice for power conversion.
• Thermal Performance: Enhanced thermal performance ensures reliability even under high temperature conditions typically found in automotive and industrial applications.
• Robustness: The device is designed to withstand harsh conditions, including the ability to handle high energy pulses in the avalanche and commutation modes.

In conclusion, the VND10N06TR-E MOSFET by STMicroelectronics is a high-quality component that combines performance, protection, and reliability for sophisticated and demanding applications.
